Nason Piston & pin set - 4P1058-STD

Part

Nason Piston & pin set - 4P1058-STD

Out Of Stock

Specifications
Ring Set:	2C4684
Oil Ring Width:	2.80mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.20mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	20.00mm x 61.00mm
Comp Height:	30.50mm + 1.50mm
Length:	66.00mm
Piston Type:	Cast

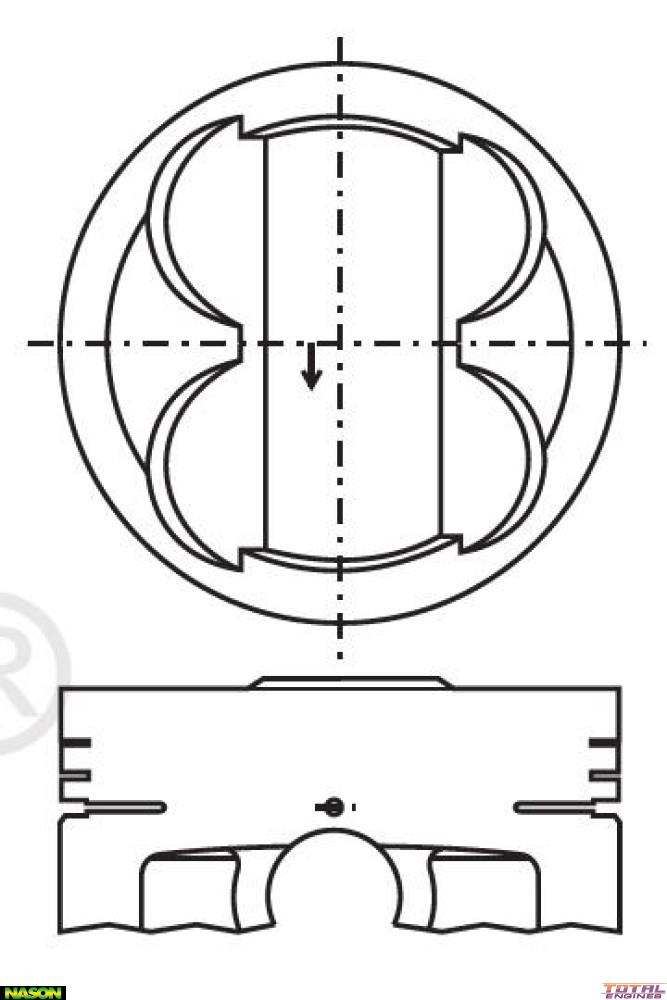

Head Type:	Dome Top with 4 Valve Reliefs
Size:	Std
Std Bore Size:	81.00mm
Piston Set:	4 x Piston & Pins

Description

Dome Top with 20mm Piston Pin
