Nason Piston & pin set - 4P1061-1.00

Part

Nason Piston & pin set - 4P1061-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	1.00mm / .040"

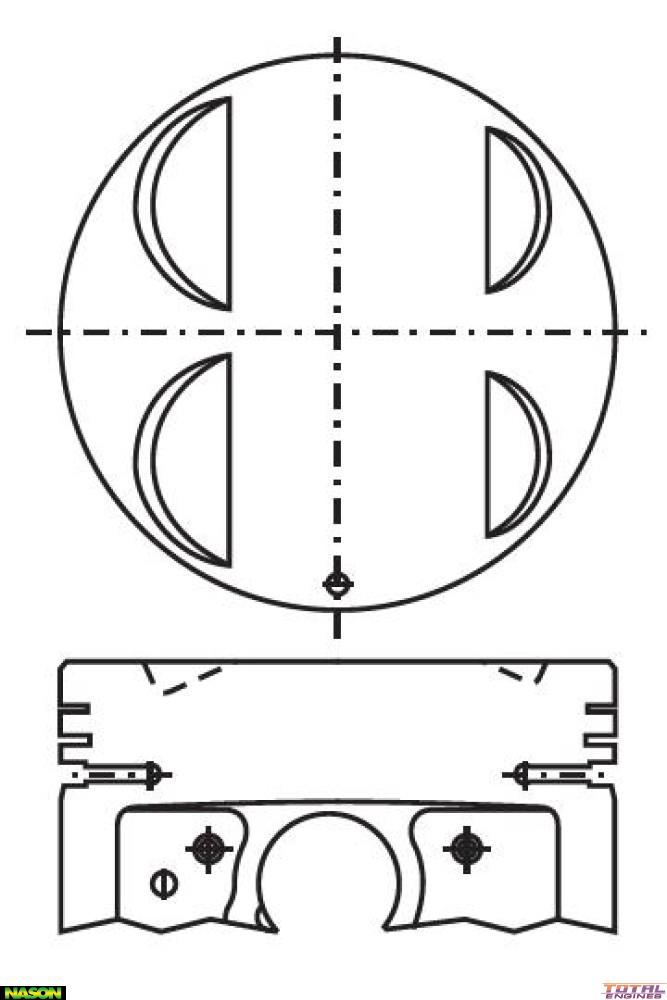

Head Type:	Flat Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	67.10mm
Comp Height:	35.10mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Full FLoating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C4653
Size:	1.00mm Oversize
