Nason Piston & pin set - 4P1062-0.50

Part

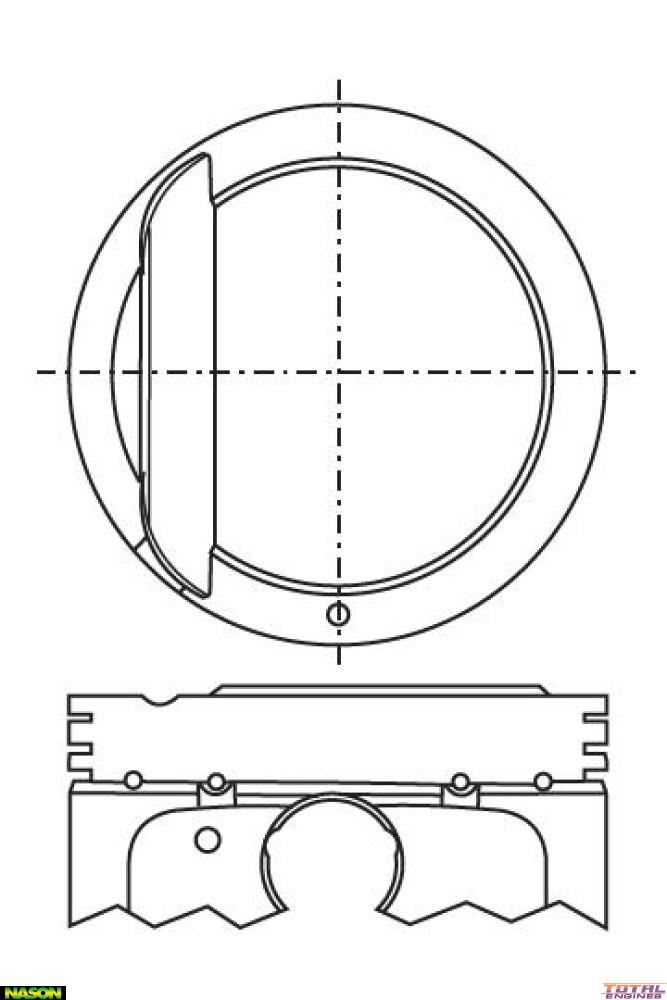

Nason Piston & pin set - 4P1062-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	82.00mm
Size:	0.50mm / .020"
Head Type:	Dome Top with 1 Valve Reliefs
Piston Type:	Cast
Length:	57.50mm
Comp Height:	31.00mm + 0.30mm
Pin Size:	20.00mm x 59.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.50mm
Ring Set:	2C4943
Size:	0.50mm Oversize
