Nason >> Nason Piston & pin set - 4P1065-0.50

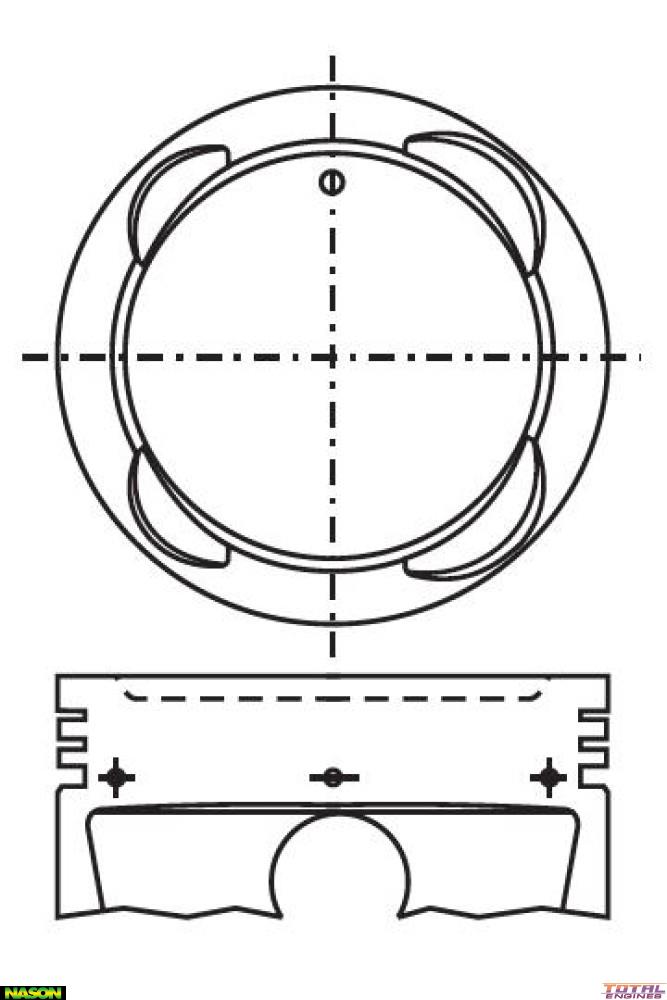

Nason Piston & pin set - 4P1065-0.50

Part
Nason logo

Nason Piston & pin set - 4P1065-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4773
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 56.00mm
Comp Height: 30.50mm + 3.30mm
Length: 55.60mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 81.00mm
Piston Set: 4 x Piston & Pins
