Nason >> Nason Piston & pin set - 4P1068-0.50

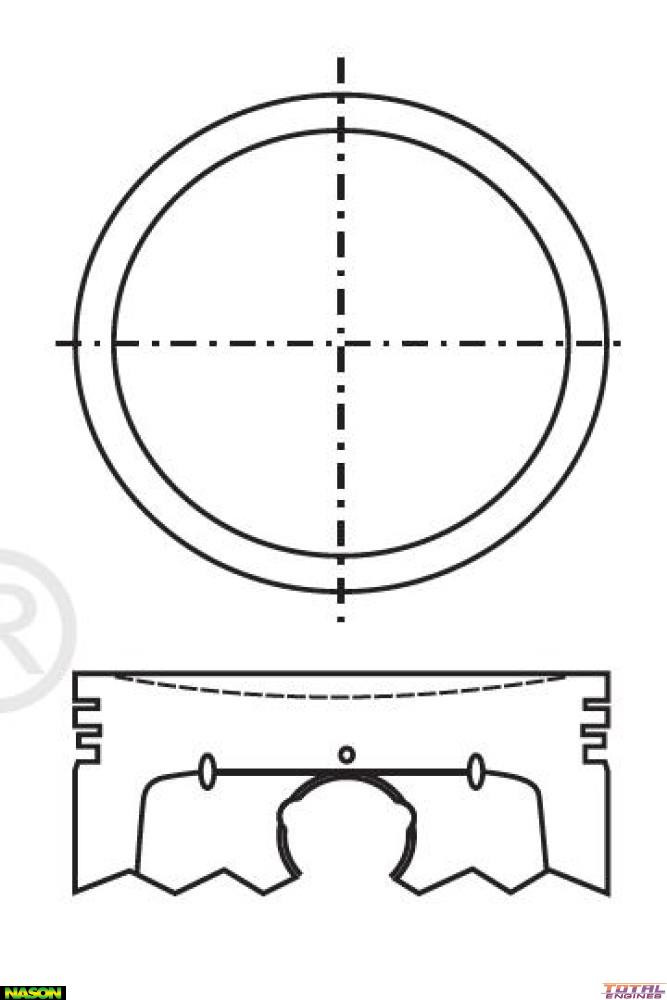

Nason Piston & pin set - 4P1068-0.50

Part
Nason logo

Nason Piston & pin set - 4P1068-0.50

$216.60

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.50mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 51.00mm
Comp Height: 28.50mm - 0.35mm
Pin Size: 21.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C5158
Size: 0.50mm Oversize

Description

Anodized Top & 2nd Ring Lands
