Nason >> Nason Piston & pin set - 4P1069-0.50

Nason Piston & pin set - 4P1069-0.50

Part
Nason logo

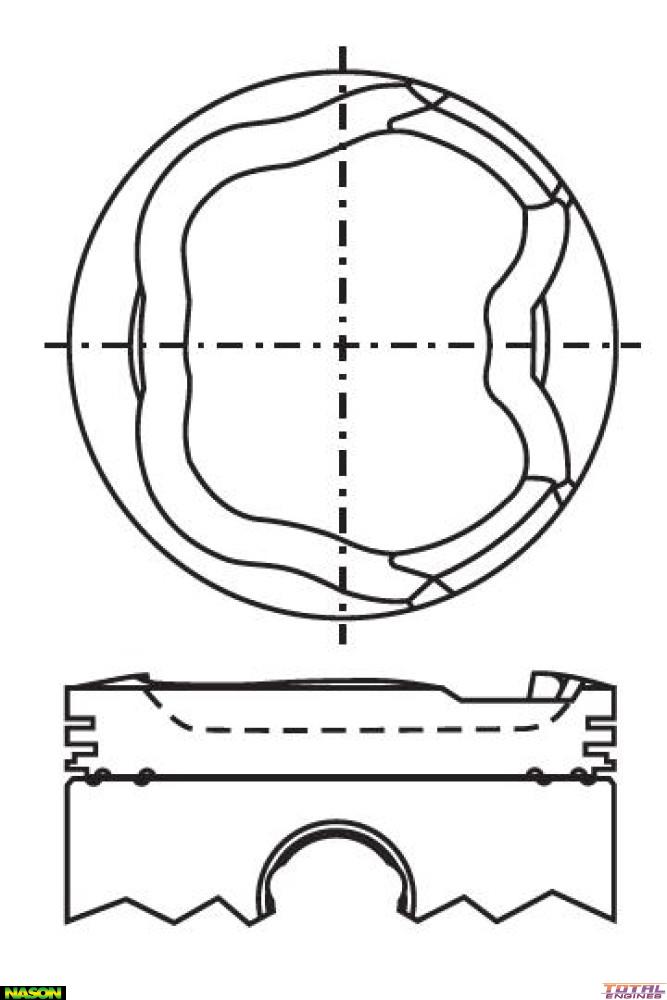

Nason Piston & pin set - 4P1069-0.50

$341.06

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 95.00mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 59.30mm
Comp Height: 39.30mm - 8.60mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5261 Or SDT10193

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 4MKRY8084
