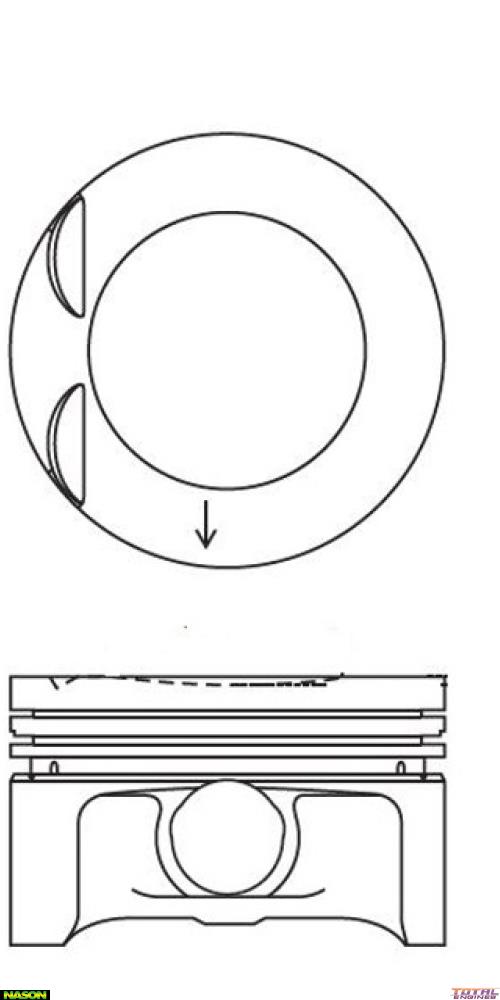

Nason Piston & pin set - 4P1073-1.00

Part

Nason Piston & pin set - 4P1073-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	81.60mm
Size:	1.00mm / .040"
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	50.40mm
Comp Height:	30.40mm - 1.80mm
Pin Size:	21.00mm x 61.50mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C5245
Size:	1.00mm Oversize
