Nason >> Nason Piston & pin set - 4P1074-STD

Nason Piston & pin set - 4P1074-STD

Part
Nason logo

Nason Piston & pin set - 4P1074-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std

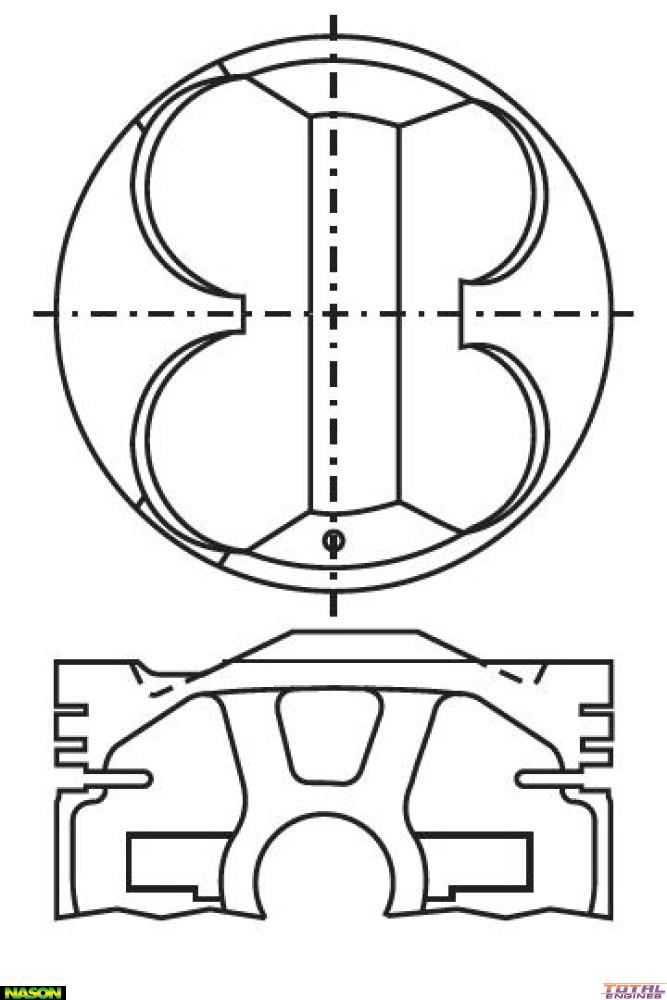

Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 71.60mm
Comp Height: 35.10mm + 4.50mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4653

Description

Replaces 4MKRY9003
