Nason >> Nason Piston & pin set - 4P1094-STD

Nason Piston & pin set - 4P1094-STD

Part
Nason logo

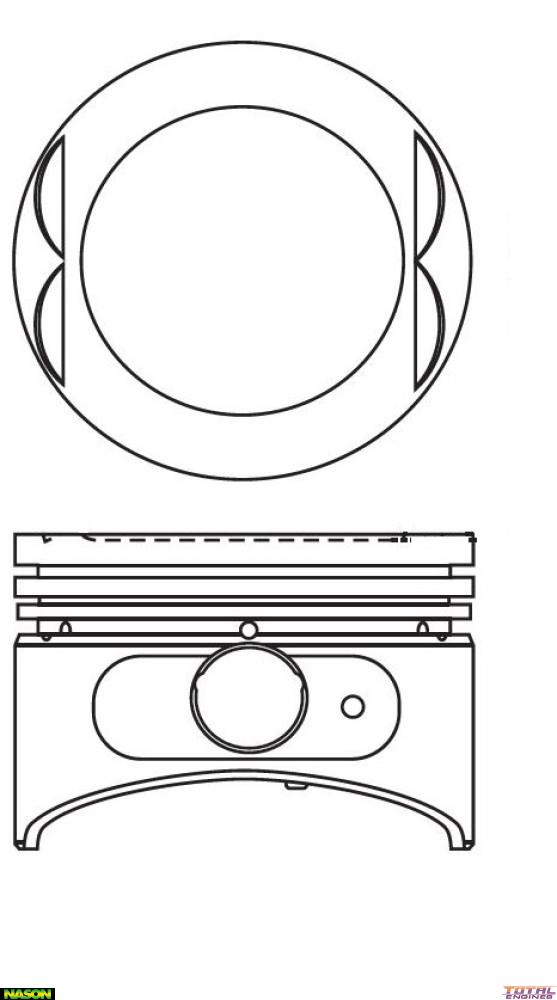

Nason Piston & pin set - 4P1094-STD

$160.88

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 62.27mm
Comp Height: 32.27mm - 1.20mm
Pin Size: 20.63mm x 63.40mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.60mm
2nd Ring Width: 1.75mm
Oil Ring Width: 3.00mm
Ring Set: 2C4876

Description

Dish Top with 4 Valve Reliefs
