Nason >> Nason Piston & pin set - 4P1095-0.50

Nason Piston & pin set - 4P1095-0.50

Part
Nason logo

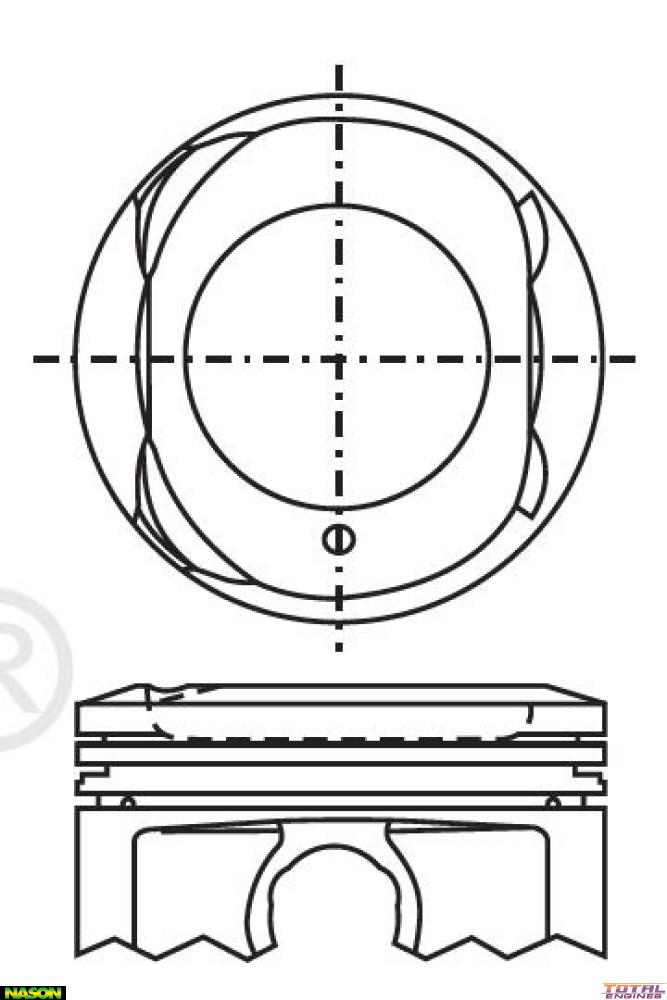

Nason Piston & pin set - 4P1095-0.50

$328.19

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.80mm
Comp Height: 32.80mm - 6.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5090

Description

Anodized Head, Top & 2nd Ring Lands

Replaces PKTO2AZ
