Nason >> Nason Piston & Pin Set - 4P1095-STD

Nason Piston & Pin Set - 4P1095-STD

Part
Nason logo

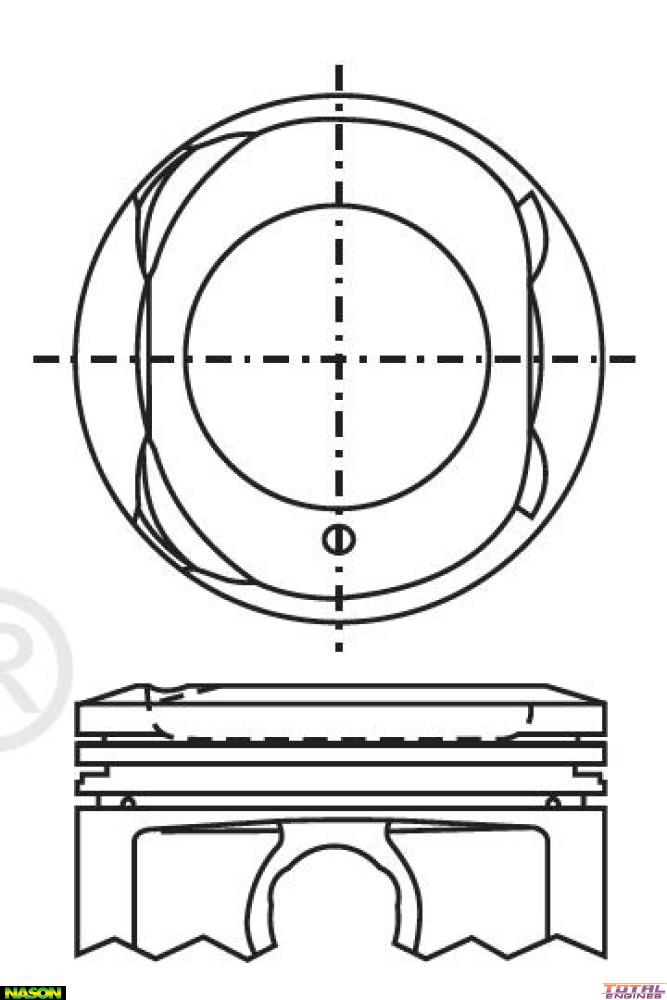

Nason Piston & Pin Set - 4P1095-STD

$328.19

Specifications
Ring Set: 2C5090
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 22.00mm x 56.00mm
Comp Height: 32.80mm - 6.50mm
Length: 55.80mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Std Bore Size: 88.50mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
