Nason >> Nason Piston & pin set - 4P1114-0.50

Nason Piston & pin set - 4P1114-0.50

Part
Nason logo

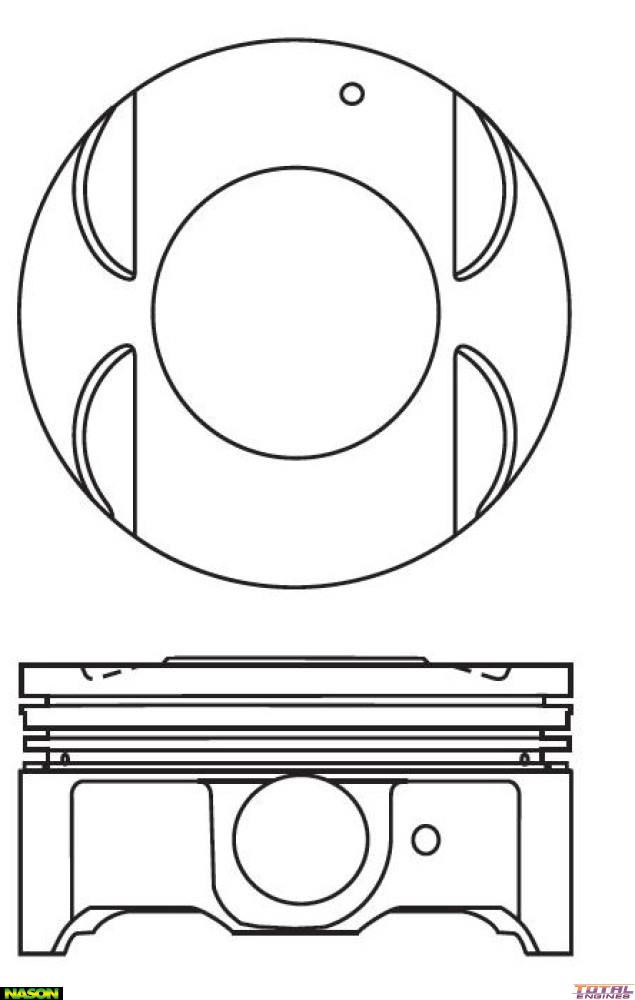

Nason Piston & pin set - 4P1114-0.50

$305.66

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 0.50mm / .020"
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 43.20mm
Comp Height: 25.40mm - 1.00mm
Pin Size: 19.00mm x 50.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5185

Description

Anodized Head, Top & 2nd Ring Lands

Fits Tapered Conrod
