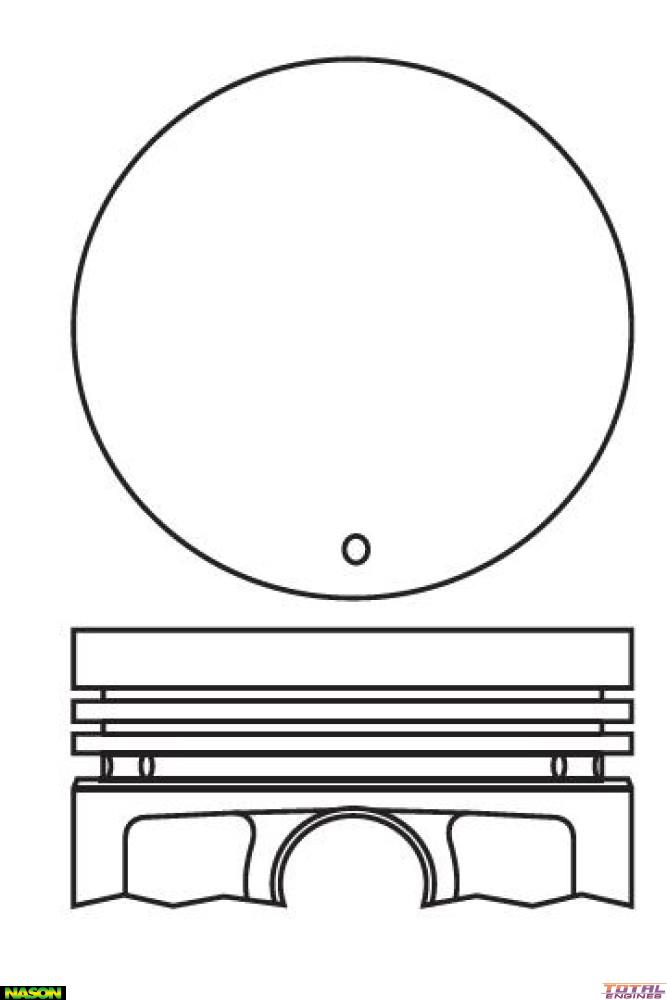

Nason Piston & pin set - 4P1120-STD

Part

Nason Piston & pin set - 4P1120-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.50mm
Size:	Std
Head Type:	Flat Top
Piston Type:	Cast
Length:	53.50mm
Comp Height:	30.50mm
Pin Size:	22.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4780

Description

Flat Top
