Nason >> Nason Piston & pin set - 4P1121-0.50

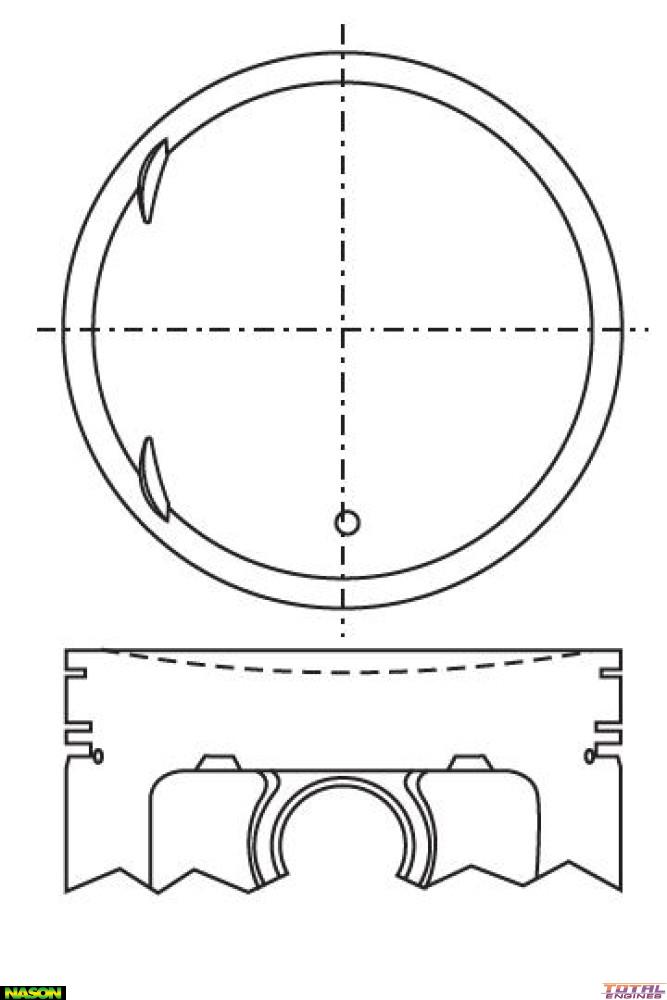

Nason Piston & pin set - 4P1121-0.50

Part
Nason logo

Nason Piston & pin set - 4P1121-0.50

Out Of Stock

Specifications
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C5099
Size: 0.50mm Oversize
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 20.00mm x 57.00mm
Comp Height: 32.00mm - 4.10mm
Length: 54.90mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 89.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
