Nason >> Nason Piston & pin set - 4P1122-1.00

Nason Piston & pin set - 4P1122-1.00

Part
Nason logo

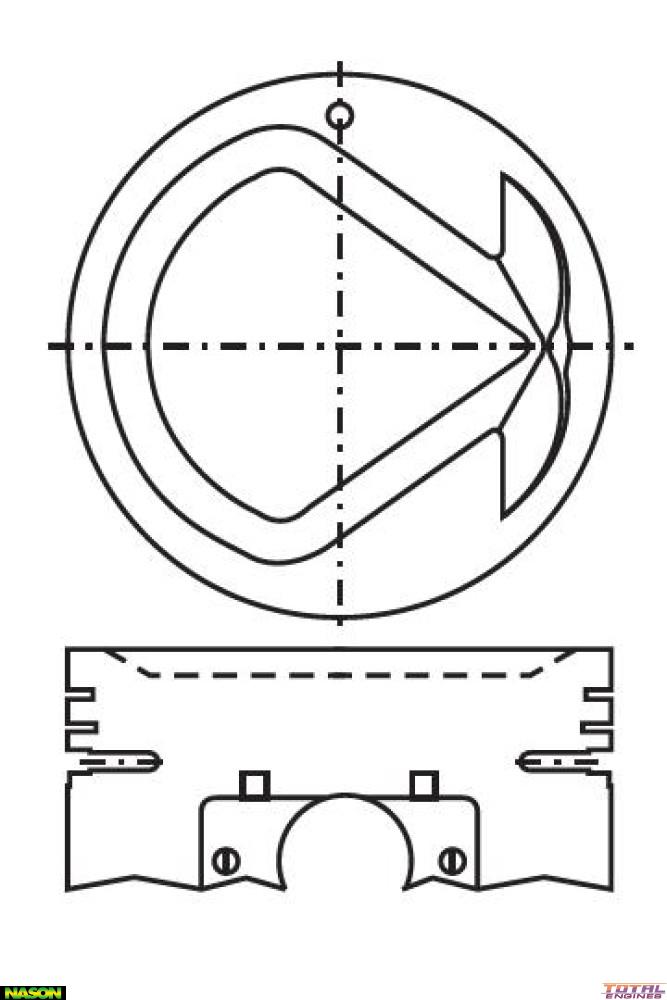

Nason Piston & pin set - 4P1122-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4637 or 4637
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 23.00mm x 77.00mm
Comp Height: 36.50mm - 4.30mm
Length: 79.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 92.60mm
Piston Set: 4 x Piston & Pins

Description

Kidney Shaped Bowl 1993 - 1998
