Nason >> Nason Piston & pin set - 4P1122-STD

Nason Piston & pin set - 4P1122-STD

Part
Nason logo

Nason Piston & pin set - 4P1122-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.60mm
Size: Std

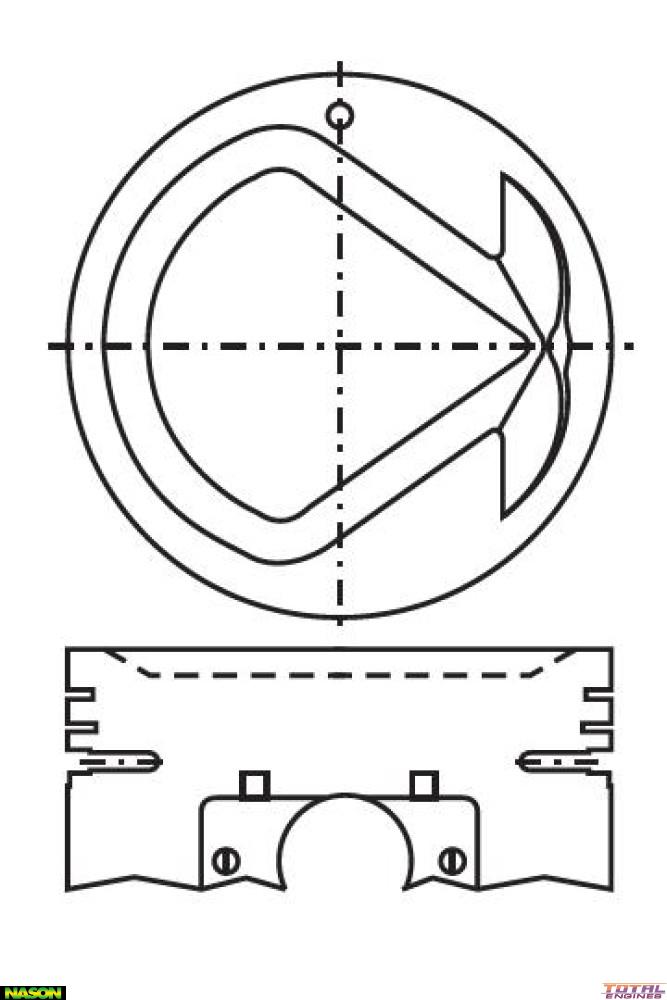

Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 79.00mm
Comp Height: 36.50mm - 4.30mm
Pin Size: 23.00mm x 77.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4637 or 4637

Description

Kidney Shaped Bowl 1993 - 1998

Replaces 4KRY2992
