Nason >> Nason Piston & pin set - 4P1123-1.00

Nason Piston & pin set - 4P1123-1.00

Part
Nason logo

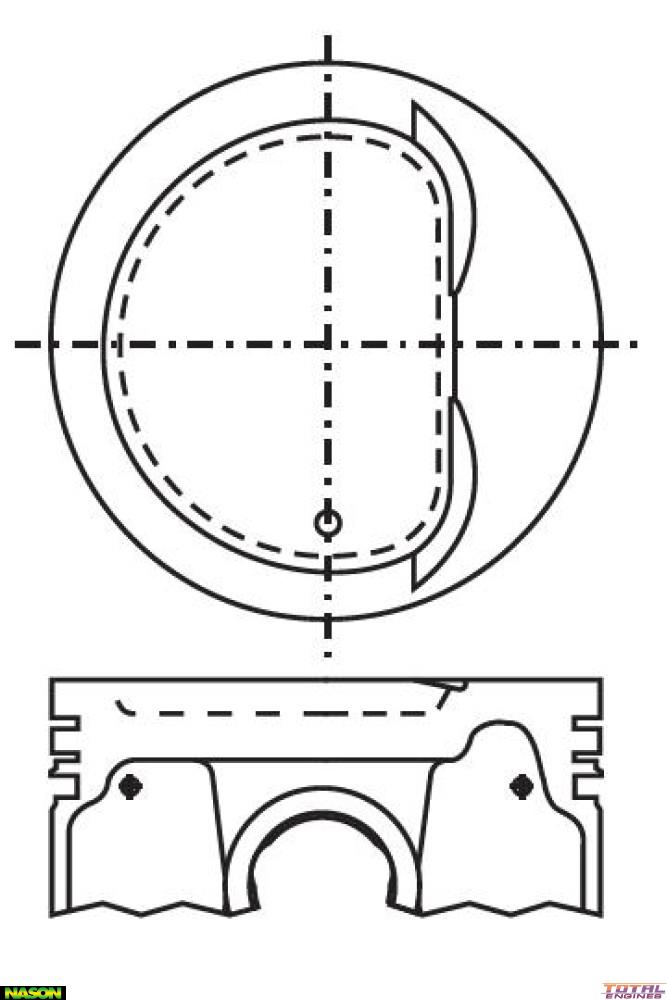

Nason Piston & pin set - 4P1123-1.00

$283.14

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4687 or 4687
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.75mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 24.00mm x 70.00mm
Comp Height: 35.20mm - 6.00mm
Length: 58.10mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 95.00mm
Piston Set: 4 x Piston & Pins
