Nason Piston & pin set - 4P1169-0.50

Part

Nason Piston & pin set - 4P1169-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	96.90mm
Size:	0.50mm / .020"

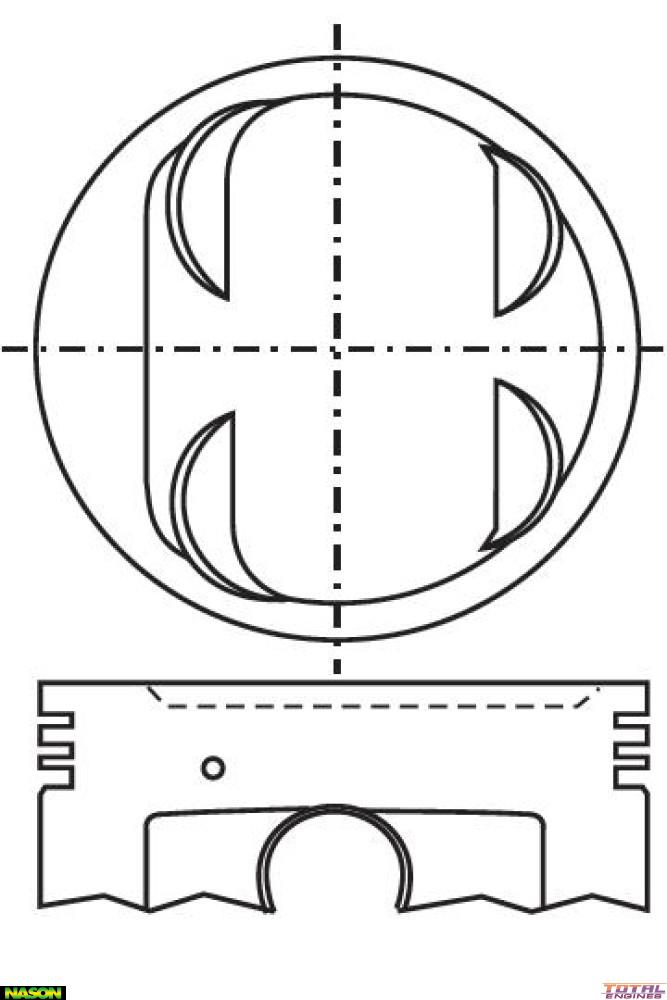

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	68.10mm
Comp Height:	33.30mm - 2.60mm
Pin Size:	23.00mm x 58.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4707
