Nason Piston & pin set - 4P1170-0.25

Part

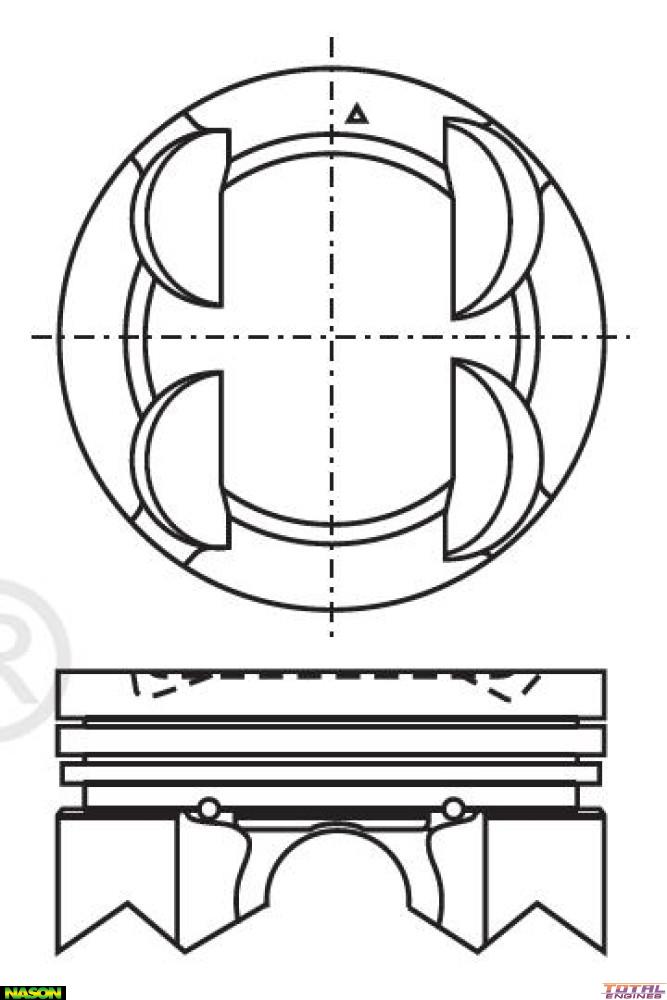

Nason Piston & pin set - 4P1170-0.25

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	0.25mm / .010"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	71.00mm
Comp Height:	36.00mm - 0.70mm
Pin Size:	22.00mm x 72.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M5664 or 5664
Size:	0.25mm Oversize
