Nason Piston & pin set - 4P1170-1.00

Part

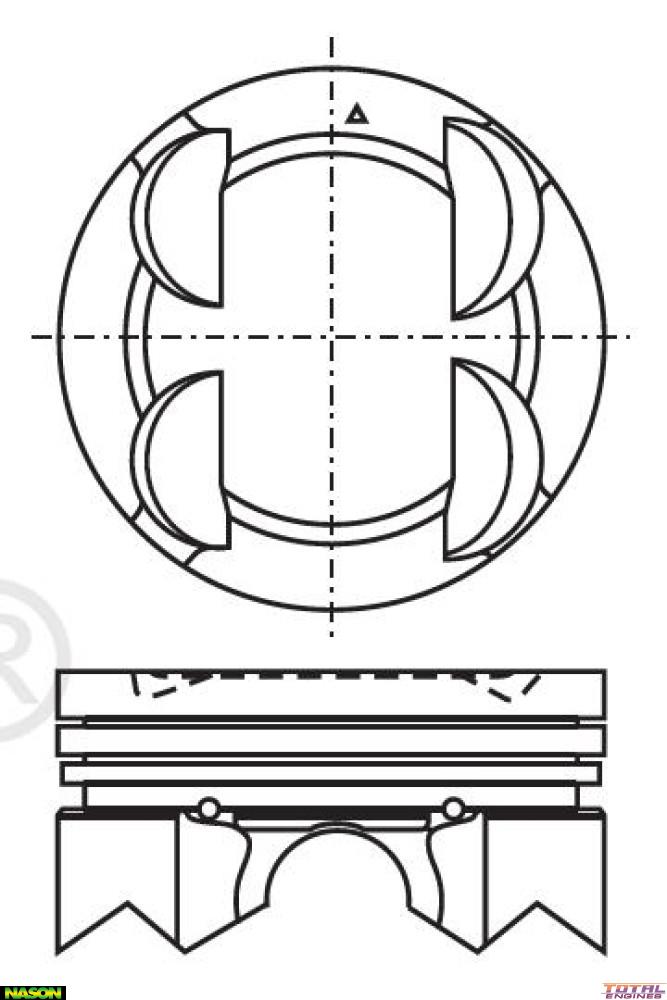

Nason Piston & pin set - 4P1170-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	2M5664 or 5664
Oil Ring Width:	4.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	22.00mm x 72.00mm
Comp Height:	36.00mm - 0.70mm
Length:	71.00mm
Piston Type:	Cast
Head Type:	Dish Top with 4 Valve Reliefs
Size:	1.00mm / .040"
Std Bore Size:	86.00mm
Piston Set:	4 x Piston & Pins
