Nason >> Nason Piston & pin set - 4P1188-0.50

Nason Piston & pin set - 4P1188-0.50

Part
Nason logo

Nason Piston & pin set - 4P1188-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 99.50mm
Size: 0.50mm / .020"

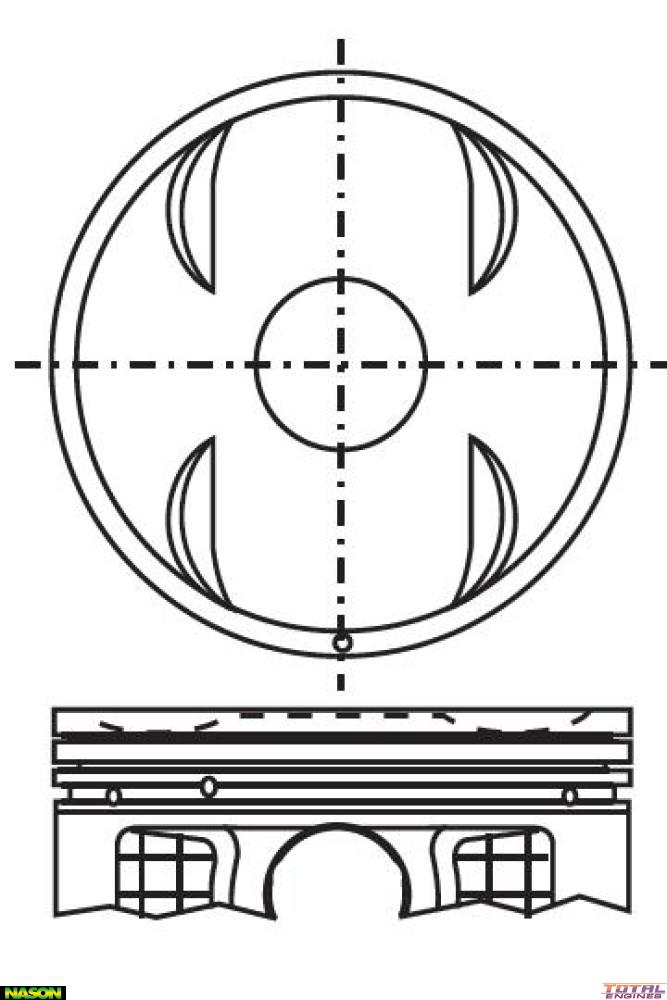

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 54.80mm
Comp Height: 30.70mm - 1.70mm
Pin Size: 23.00mm x 64.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5219 Or SWF20068

Description

Bowl Depth 1.70mm

Anodized Head, Top & 2nd Ring Lands
