Nason >> Nason Piston & pin set - 4P1191-STD

Nason Piston & pin set - 4P1191-STD

Part
Nason logo

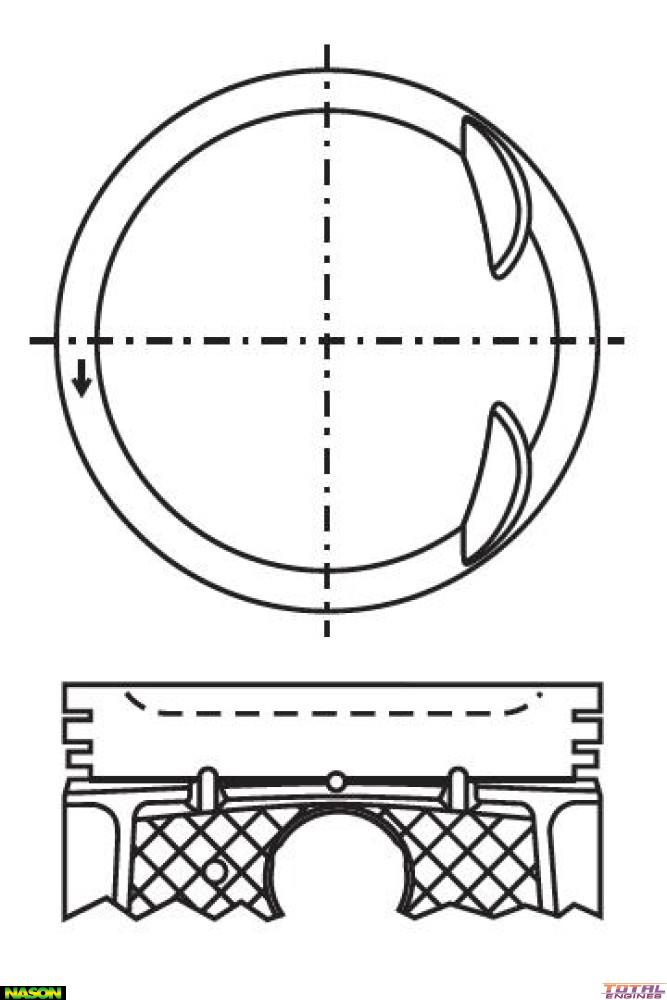

Nason Piston & pin set - 4P1191-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.50mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 55.00mm
Comp Height: 32.50mm - 4.40mm
Pin Size: 22.50mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 2M5168

Description

Round Bowl

Anodized Head, Top & 2nd Ring Lands

Replaces 4MKRY8107
