Nason >> Nason Piston & pin set - 4P1192-0.50

Nason Piston & pin set - 4P1192-0.50

Part
Nason logo

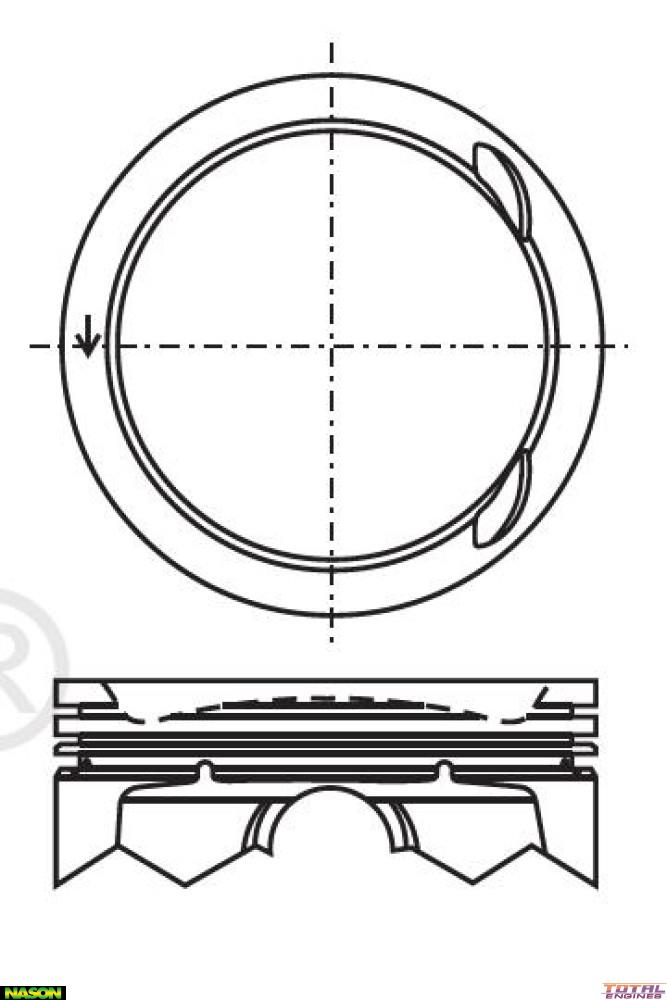

Nason Piston & pin set - 4P1192-0.50

Out Of Stock

Specifications
Ring Set: 2C5099
Oil Ring Width: 2.50mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 20.00mm x 55.00mm
Comp Height: 28.40mm - 6.80mm
Length: 50.60mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 89.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
