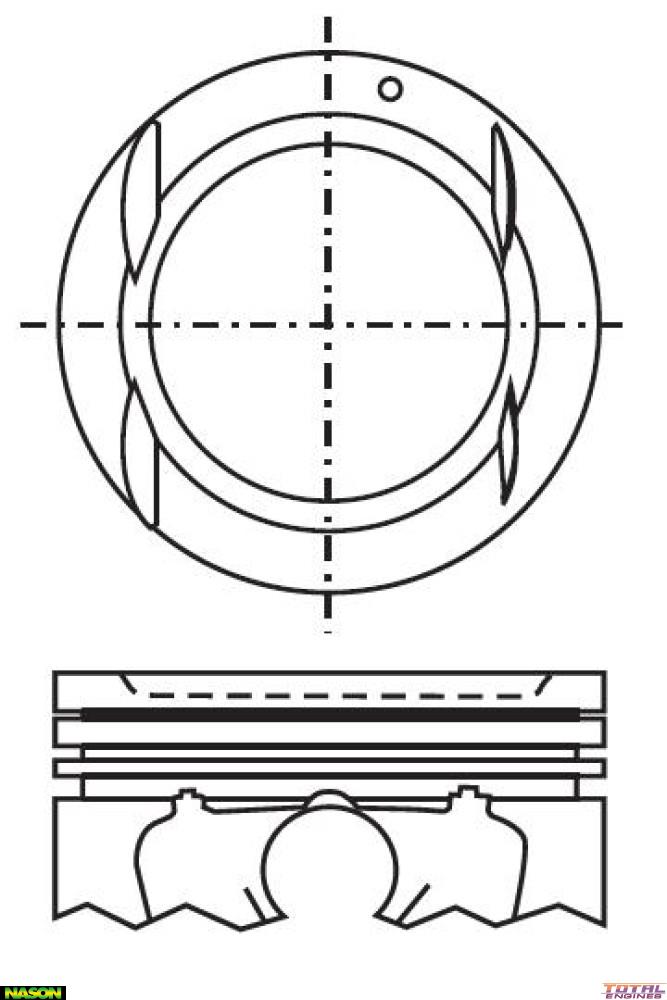

Nason Piston & pin set - 4P1194-STD

Part

Nason Piston & pin set - 4P1194-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	79.00mm
Size:	Std
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	49.80mm
Comp Height:	27.80mm - 2.60mm
Pin Size:	18.00mm x 55.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4602

Description

Suits F16D3
