Nason Piston & Pin Set - 4P1201-0.50

Part

Nason Piston & Pin Set - 4P1201-0.50

Out Of Stock

Specifications
Ring Set:	2C4876
Oil Ring Width:	3.00mm
2nd Ring Width:	1.75mm
Top Ring Width:	1.60mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	20.63mm x 63.40mm
Comp Height:	32.27mm
Length:	62.27mm
Piston Type:	Cast

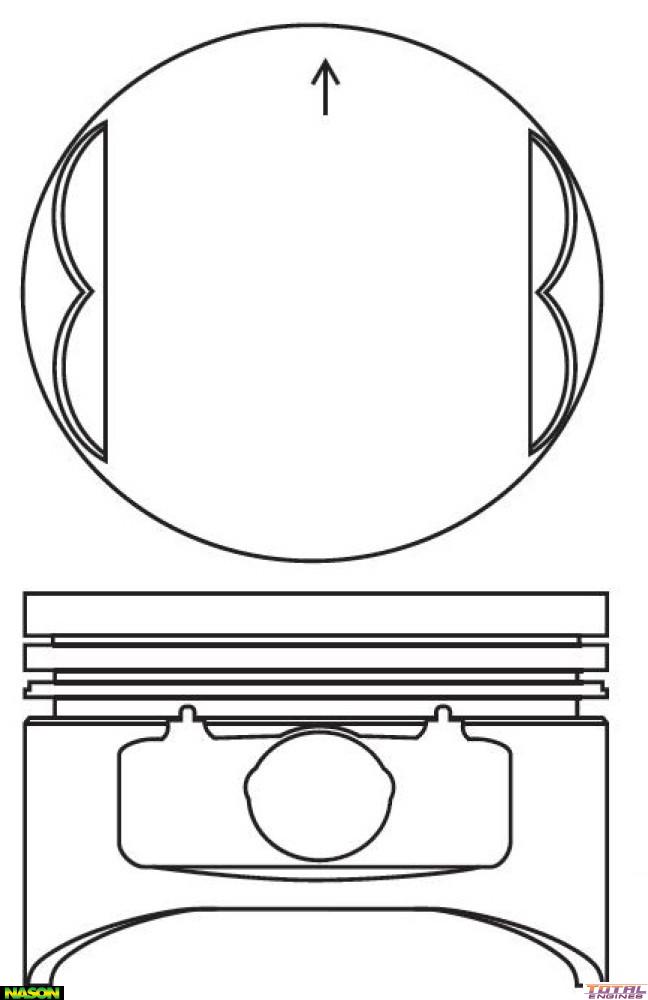

Head Type:	Flat Top with 4 Valve Reliefs
Size:	0.50mm / .020"
Std Bore Size:	86.00mm
Piston Set:	4 x Piston & Pins

Description

Flat Top with 4 Valve Reliefs
