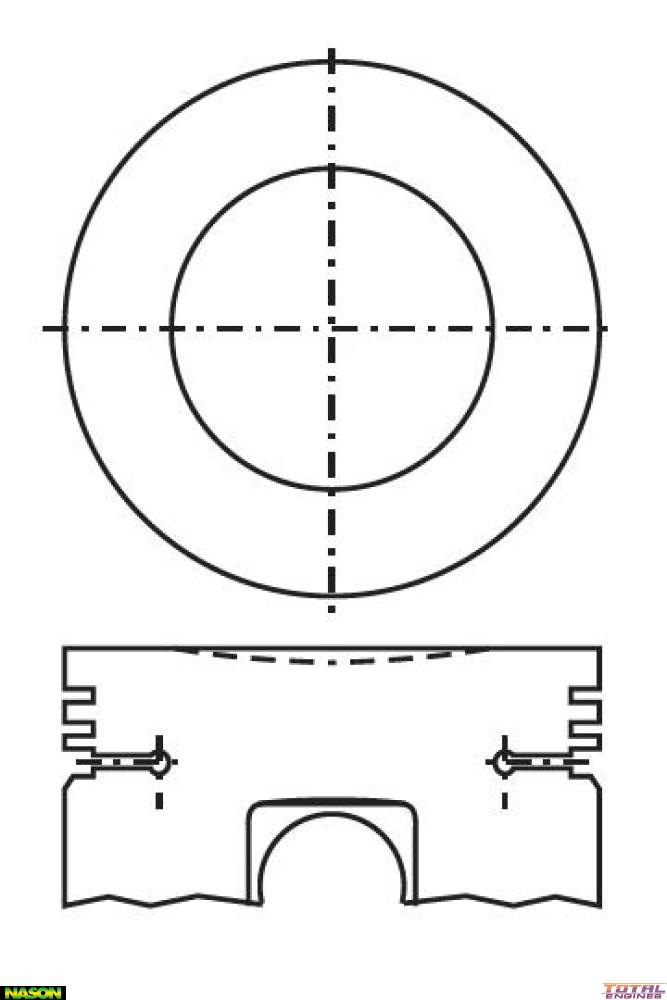

Nason Piston & pin set - 4P1206-1.00

Part

Nason Piston & pin set - 4P1206-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	80.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top
Piston Type:	Cast
Length:	73.00mm
Comp Height:	36.00mm - 2.00mm
Pin Size:	22.00mm x 64.50mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	2C6761 or 6761
Size:	1.00mm Oversize

Description

Circlip Piston
