Nason >> Nason Piston & pin set - 4P1207-1.00

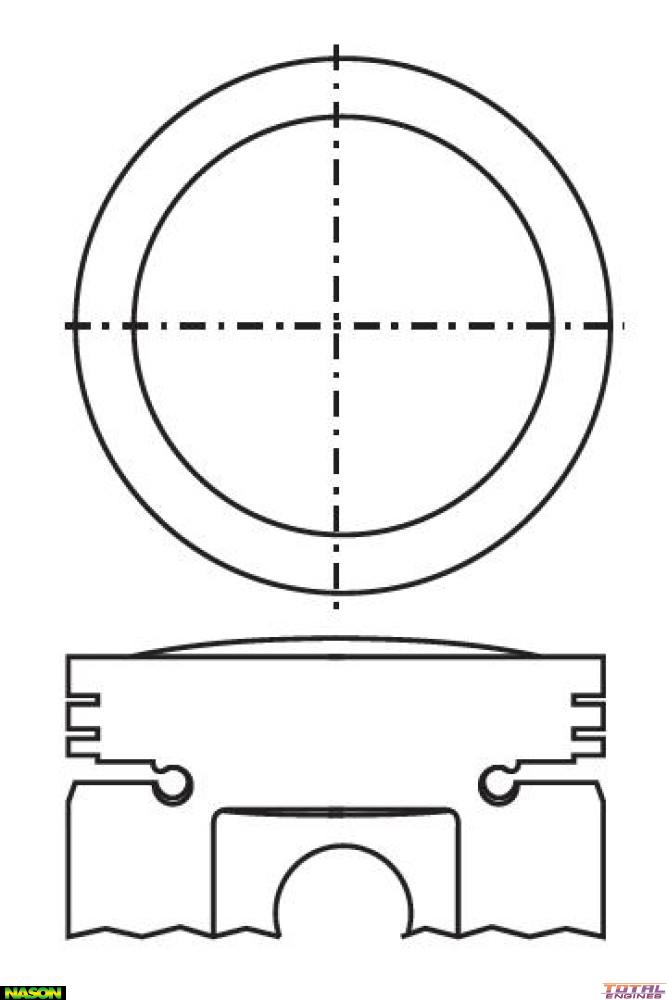

Nason Piston & pin set - 4P1207-1.00

Part
Nason logo

Nason Piston & pin set - 4P1207-1.00

$123.09

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 78.00mm
Size: 1.00mm / .040"
Head Type: Dome Top
Piston Type: Cast
Length: 78.20mm
Comp Height: 38.40mm + 2.80mm
Pin Size: 20.00mm x 65.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C64237
Size: 1.00mm Oversize

Description

20mm Pin
