Nason >> Nason Piston & pin set - 4P1213-1.00

Nason Piston & pin set - 4P1213-1.00

Part
Nason logo

Nason Piston & pin set - 4P1213-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 68.90mm
Comp Height: 36.00mm - 8.30mm
Pin Size: 18.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5300

Description

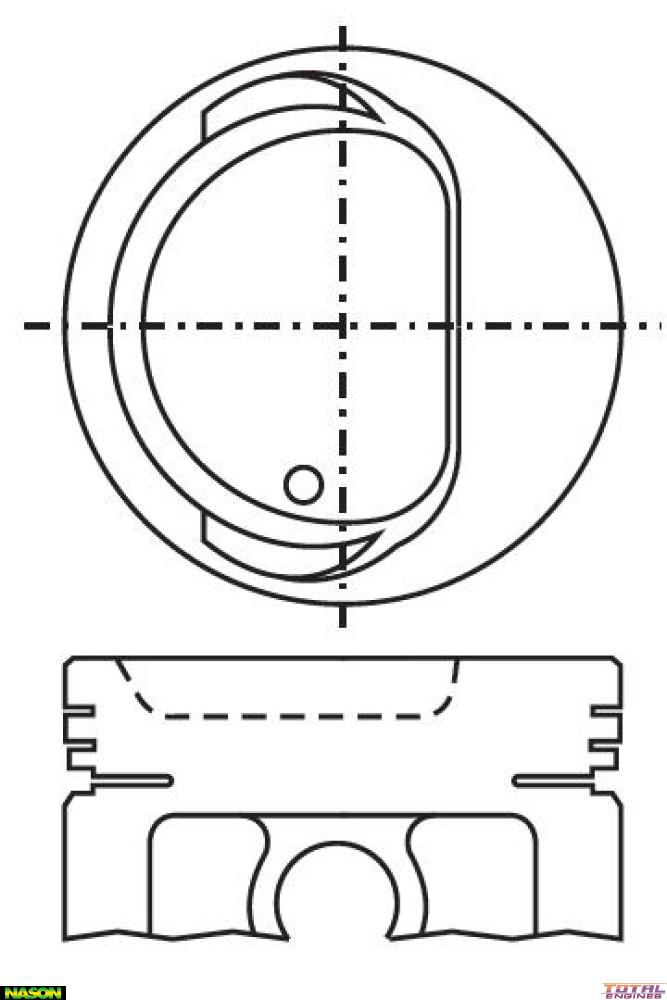

D Shaped Dish Top

Replaces 4MKRY7007 & 4KRY7007
