Nason >> Nason Piston & pin set - 4P1214-STD

Nason Piston & pin set - 4P1214-STD

Part
Nason logo

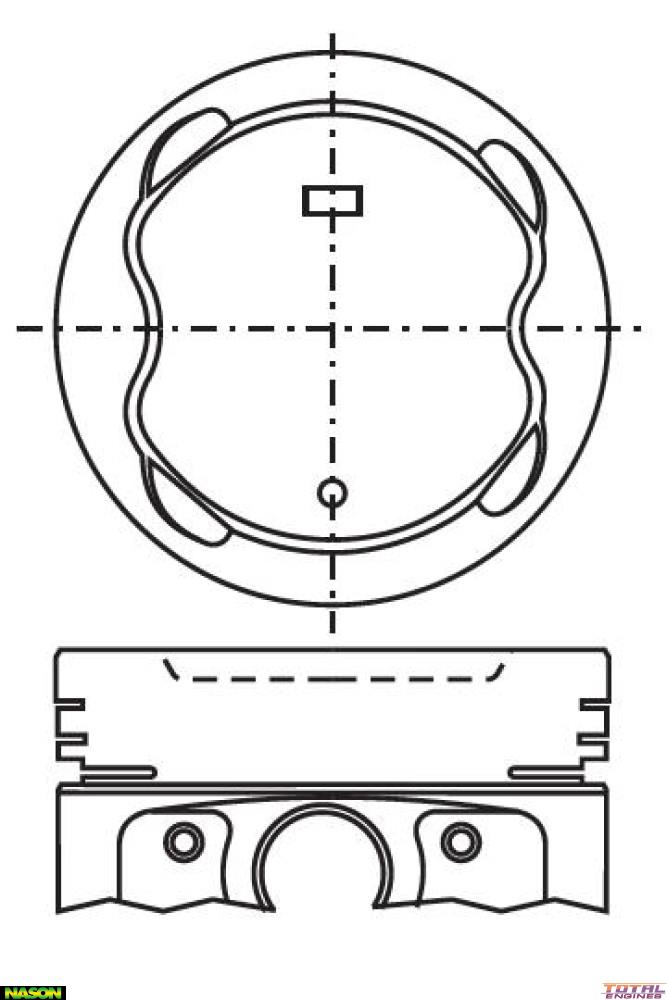

Nason Piston & pin set - 4P1214-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 68.40mm
Comp Height: 35.40mm - 4.40mm
Pin Size: 20.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4219 or 4219

Description

Press Fit Pin 1987 to 1996

Replaces 4KRY8002
