Nason >> Nason Piston & pin set - 4P1215-1.00

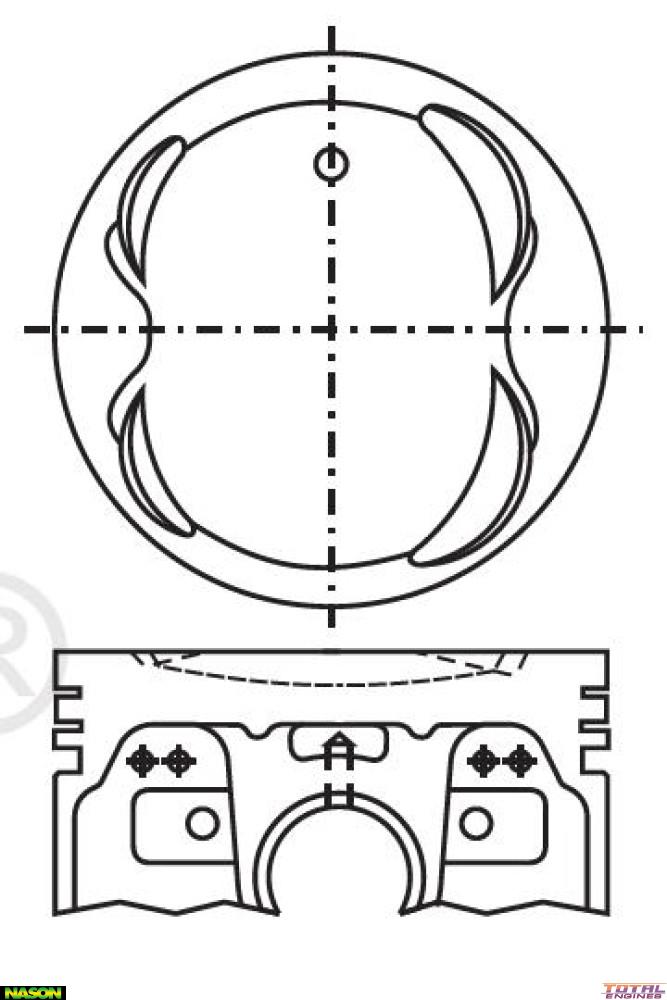

Nason Piston & pin set - 4P1215-1.00

Part
Nason logo

Nason Piston & pin set - 4P1215-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 68.00mm
Comp Height: 35.40mm - 4.30mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Full Flaoting
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4219 or 4219

Description

Full Floating Pin 1994 to 1997

Replaces 4MKRY7019
