Nason >> Nason Piston & pin set - 4P1216-1.00

Nason Piston & pin set - 4P1216-1.00

Part
Nason logo

Nason Piston & pin set - 4P1216-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C6180 or 6180
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 61.00mm
Comp Height: 30.50mm - 0.90mm
Length: 64.50mm
Piston Type: Cast

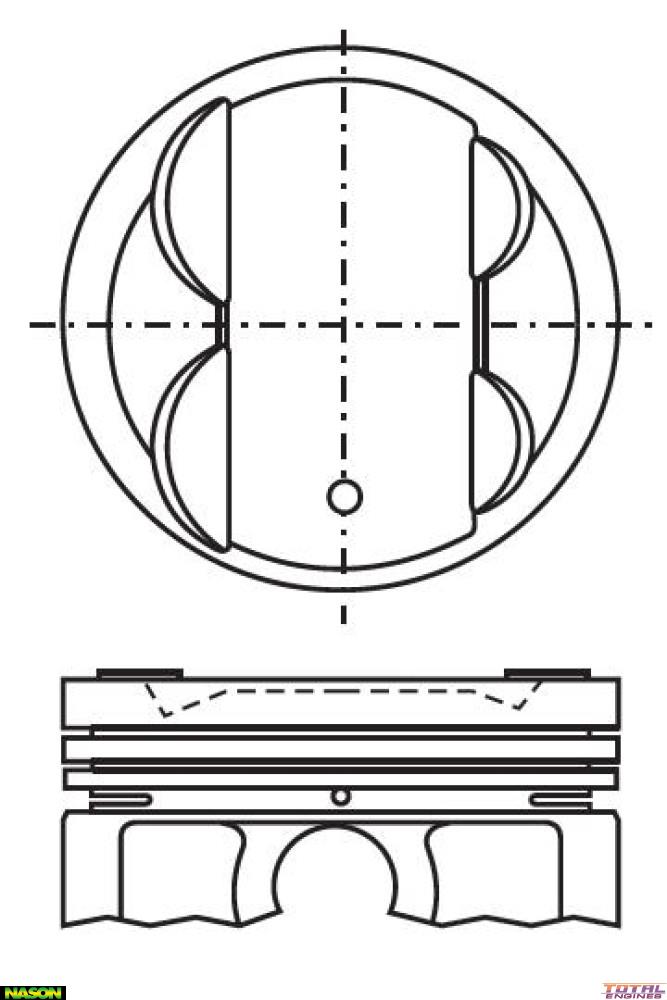

Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 81.00mm
Piston Set: 4 x Piston & Pins

Description

Dish Top with 18mm Pin
