Nason >> Nason Piston & pin set - 4P1217-0.50

Nason Piston & pin set - 4P1217-0.50

Part
Nason logo

Nason Piston & pin set - 4P1217-0.50

$193.05

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 81.00mm
Size: 0.50mm / .020"

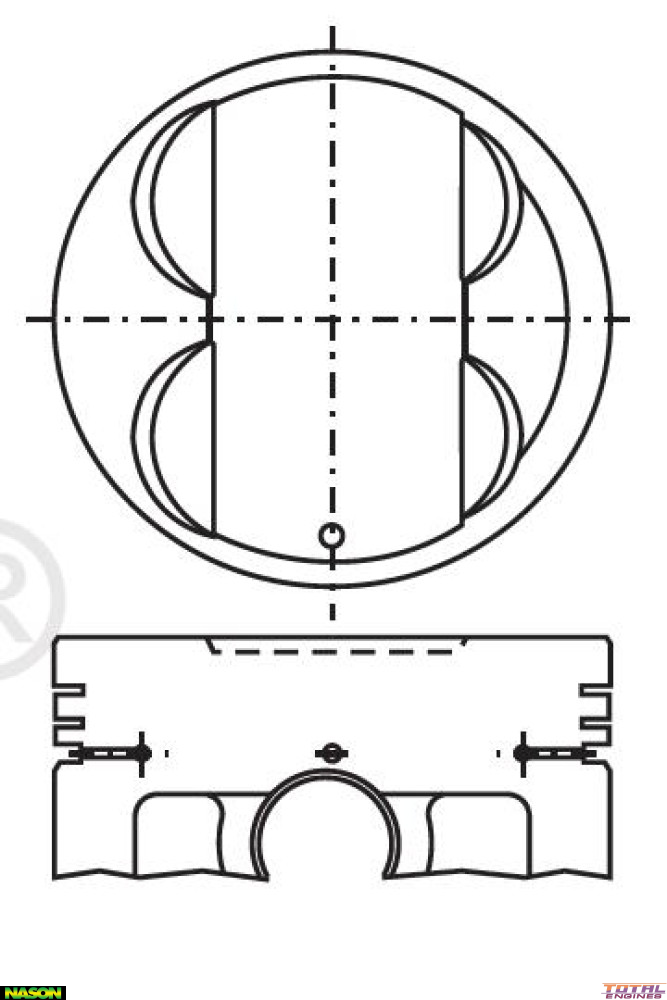

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 64.60mm
Comp Height: 30.60mm - 1.00mm
Pin Size: 20.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C6180 or 6180

Description

Dish Top with 20mm Pin

Replaces 4KRY8007
