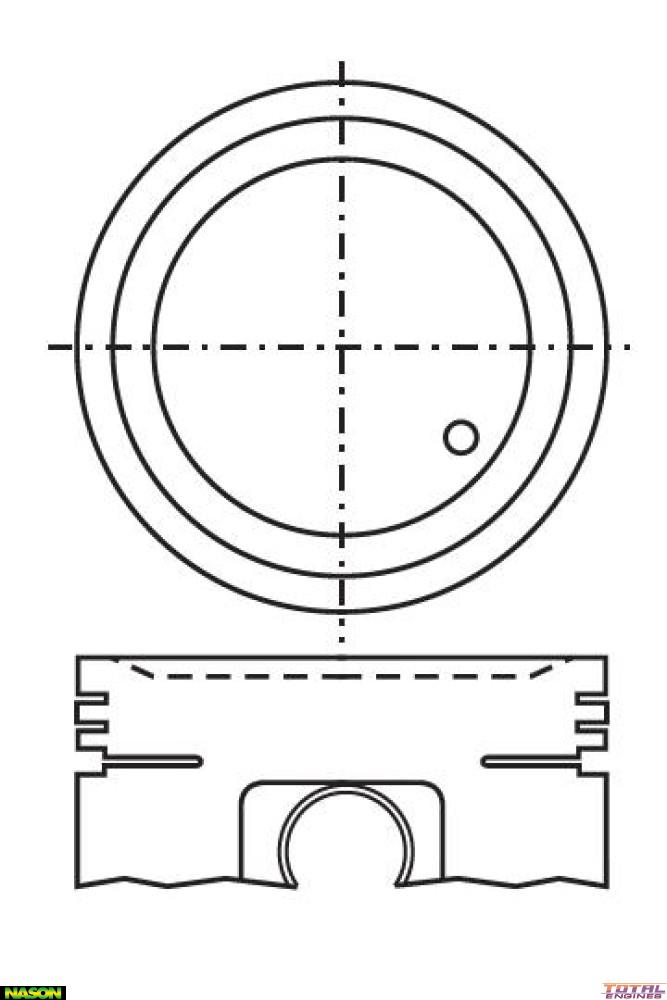

Nason Piston & pin set - 4P1233-STD

Part

Nason Piston & pin set - 4P1233-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	74.00mm
Size:	Std
Head Type:	Dish Top
Piston Type:	Cast
Length:	57.50mm
Comp Height:	27.50mm - 2.60mm
Pin Size:	17.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M4396
