Nason >> Nason Piston & pin set - 4P1234-0.50

Nason Piston & pin set - 4P1234-0.50

Part
Nason logo

Nason Piston & pin set - 4P1234-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.60mm
Size: 0.50mm / .020"

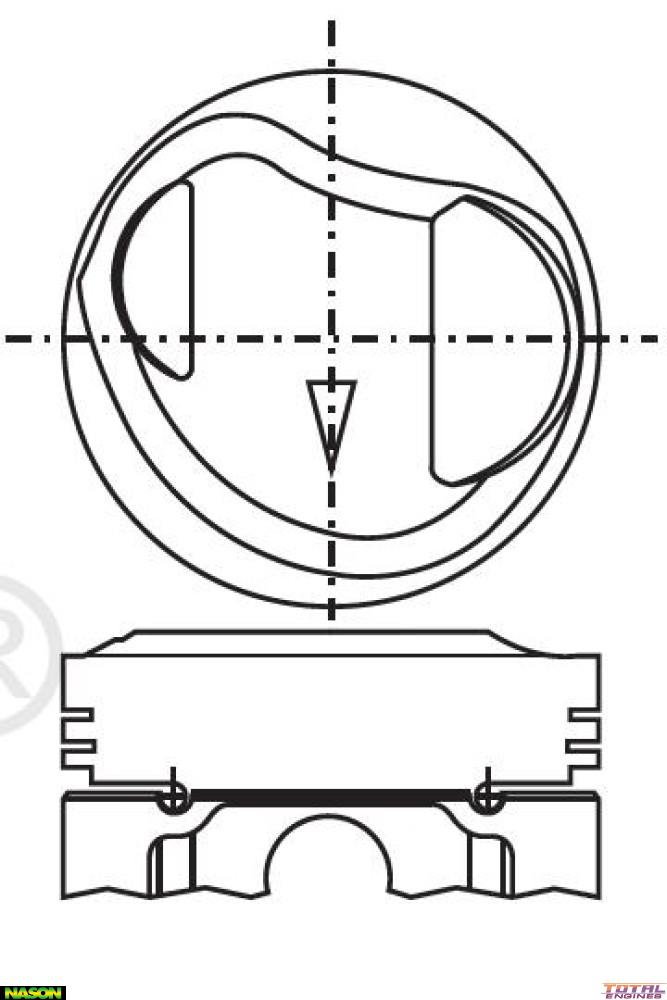

Head Type: Dome Top with 2 Valve Reliefs
Piston Type: Cast
Length: 71.80mm
Comp Height: 34.00mm + 3.80mm
Pin Size: 19.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4367

Description

Replaces 4MKRY2945 4KRY2945
