Nason >> Nason Piston & pin set - 4P1235-STD

Nason Piston & pin set - 4P1235-STD

Part
Nason logo

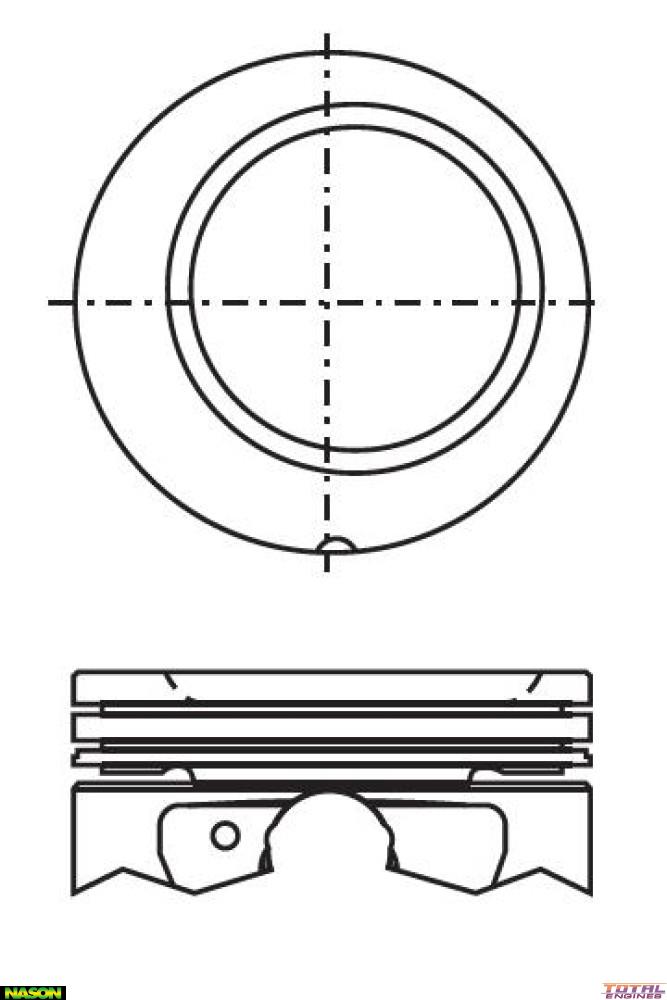

Nason Piston & pin set - 4P1235-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std
Head Type: Dish Top
Piston Type: Cast
Length: 55.60mm
Comp Height: 30.50mm - 5.10mm
Pin Size: 21.00mm x 61.50mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2M4601 or 4601
Size: 63mm Bowl X 5.10mm

Description

63mm Bowl x 5.10mm
