Nason >> Nason Piston & pin set - 4P1237-0.50

Nason Piston & pin set - 4P1237-0.50

Part
Nason logo

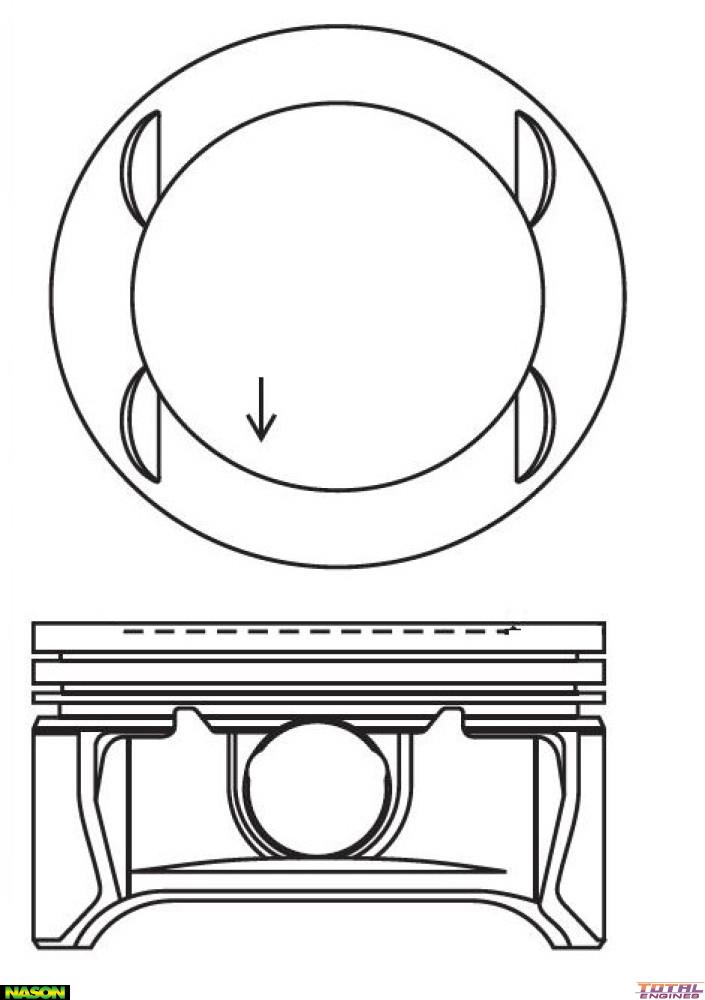

Nason Piston & pin set - 4P1237-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 73.40mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 44.00mm
Comp Height: 23.00mm - 1.25mm
Pin Size: 18.00mm x 51.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4162

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 4KRY7009
