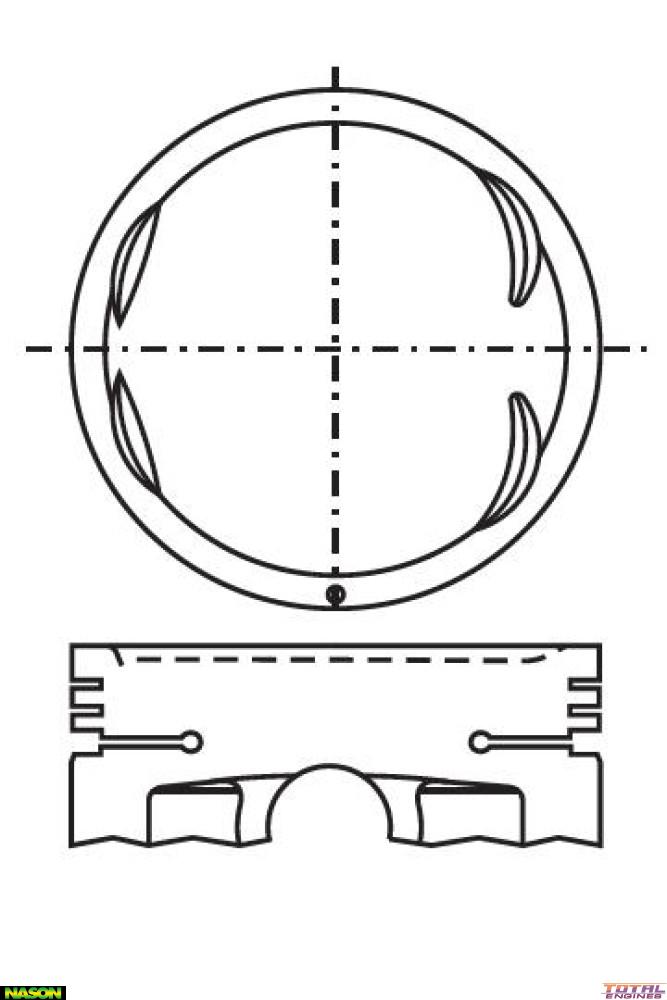

Nason Piston & pin set - 4P1238-0.50

Part

Nason Piston & pin set - 4P1238-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	84.50mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	64.90mm
Comp Height:	30.10mm - 2.30mm
Pin Size:	20.00mm x 61.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C6156 or 6156
Size:	0.50mm Oversize
