Nason >> Nason Piston & pin set - 4P1240-1.00

Nason Piston & pin set - 4P1240-1.00

Part
Nason logo

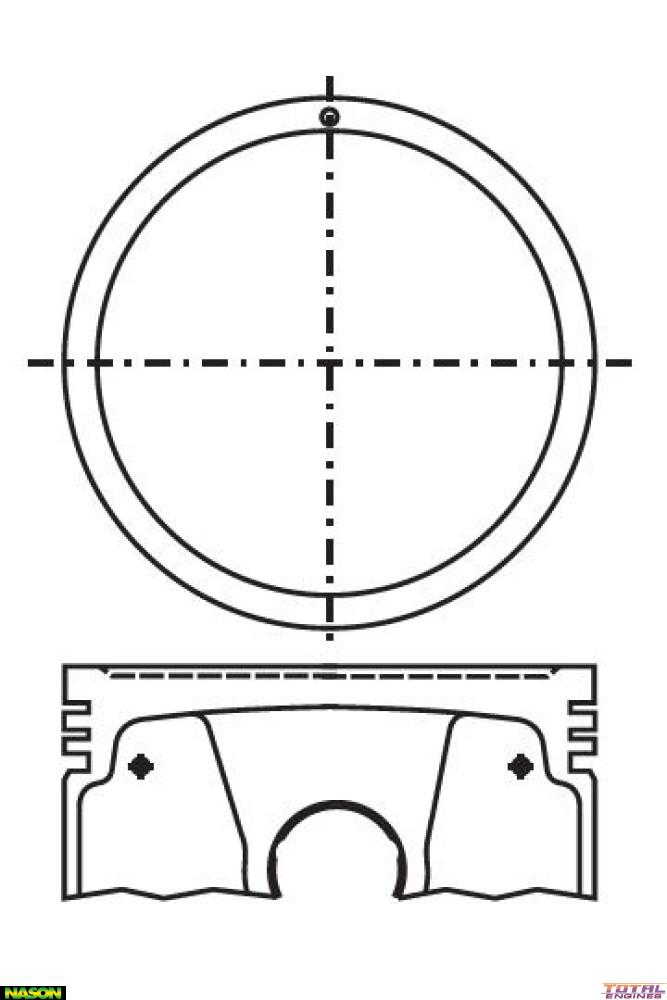

Nason Piston & pin set - 4P1240-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 89.00mm
Size: 1.00mm / .040"
Head Type: Dish Top
Piston Type: Cast
Length: 68.30mm
Comp Height: 34.00mm - 0.60mm
Pin Size: 21.00mm x 59.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4660 or 4660

Description

With Full Floating Pin

Replaces 4MKRY8016 4KRY8016
