Nason >> Nason Piston & pin set - 4P1244-STD

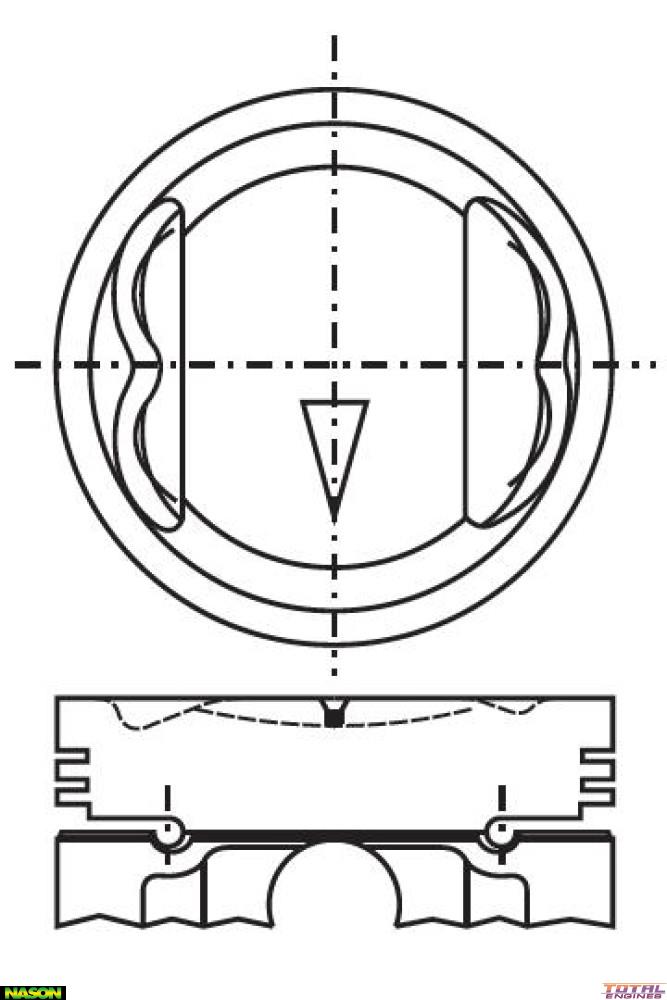

Nason Piston & pin set - 4P1244-STD

Part
Nason logo

Nason Piston & pin set - 4P1244-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.50mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 58.00mm
Comp Height: 29.00mm - 0.60mm
Pin Size: 18.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C5716 or 5716

Description

Dish Top with 4 Valve Reliefs

Replaces 4KRY8038
