Nason Piston & pin set - 4P1247-STD

Part

Nason Piston & pin set - 4P1247-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	78.00mm
Size:	Std

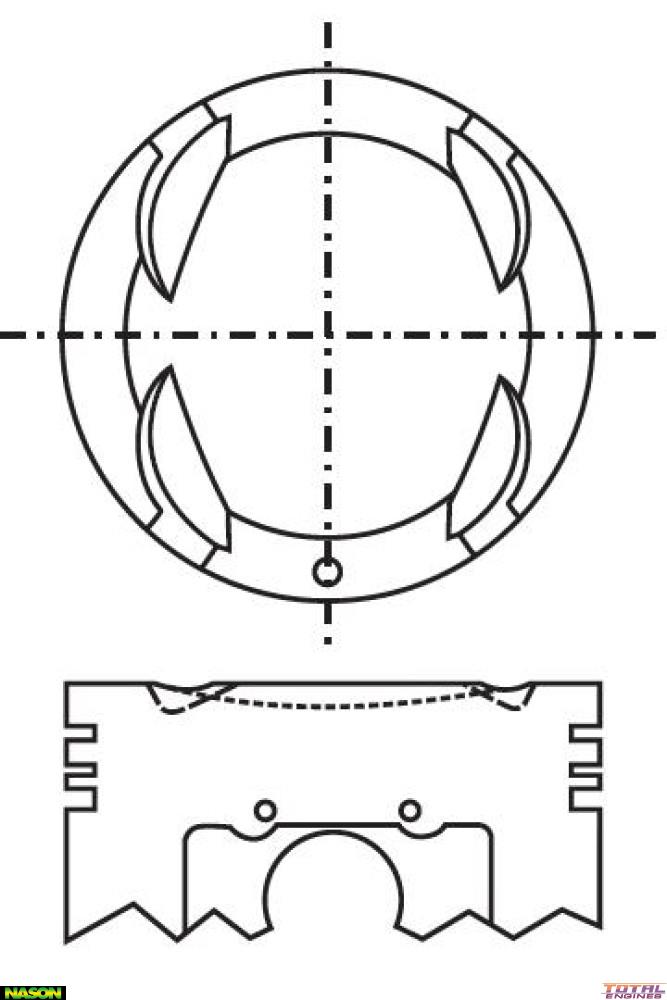

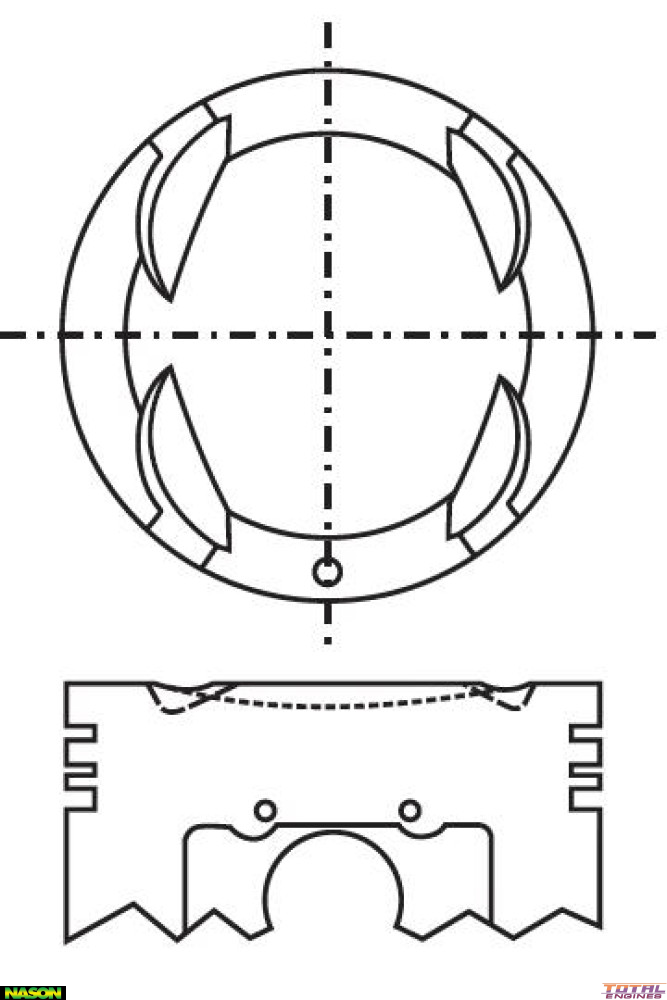

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	62.40mm
Comp Height:	31.90mm - 2.60mm
Pin Size:	20.00mm x 57.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4737 or 4737
Size:	31.90mm Compression Height
