Nason >> Nason Piston & pin set - 4P1248-1.00

Nason Piston & pin set - 4P1248-1.00

Part
Nason logo

Nason Piston & pin set - 4P1248-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 83.00mm
Size: 1.00mm / .040"

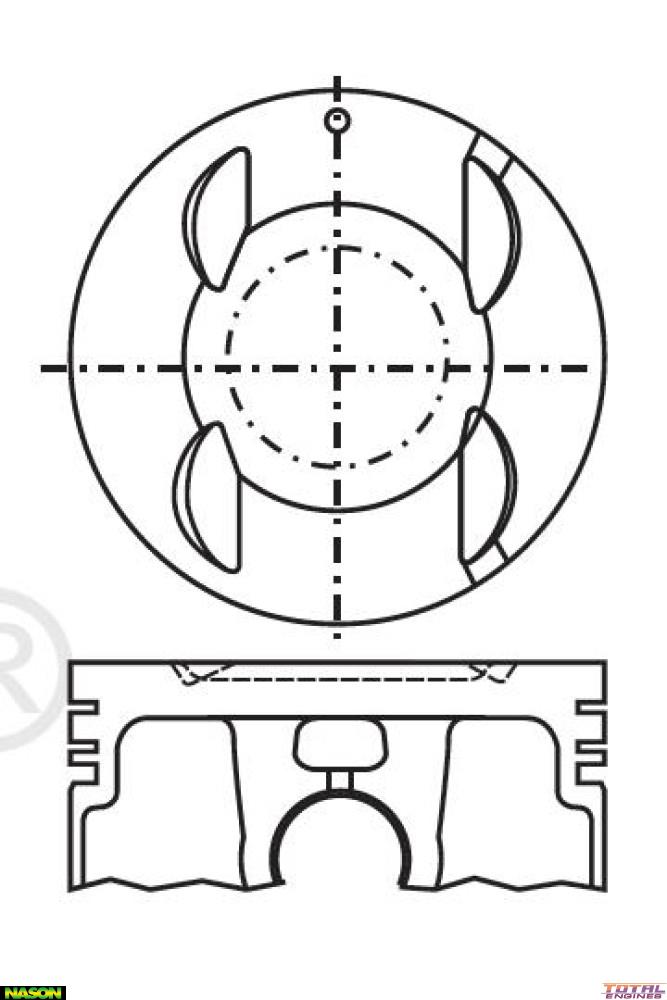

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 61.00mm
Comp Height: 30.70mm - 2.50mm
Pin Size: 20.00mm x 61.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4651

Description

Replaces 4KRY8046
