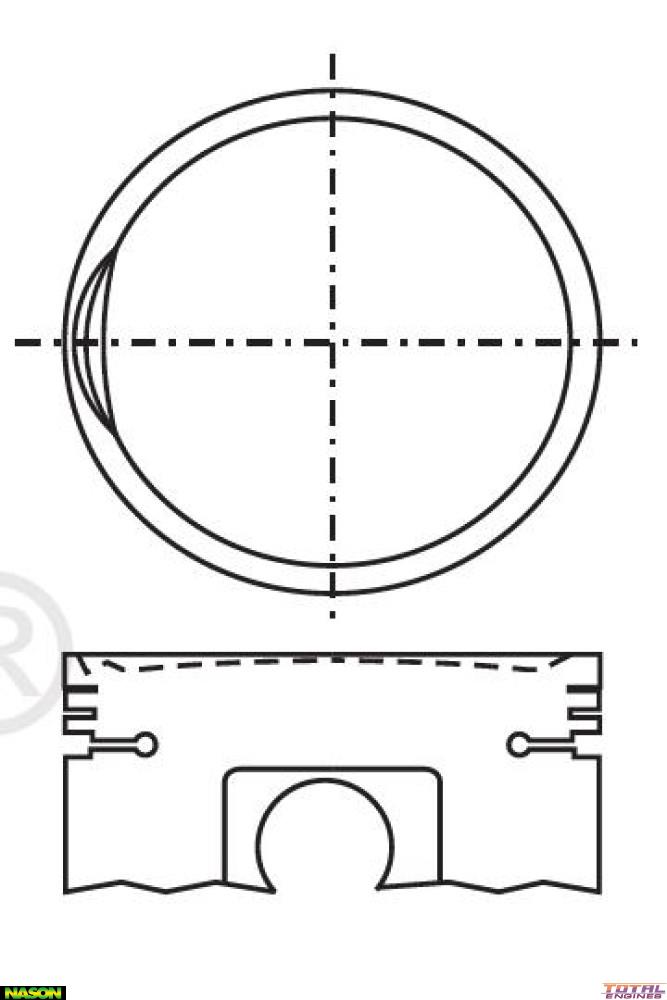

Nason Piston & pin set - 4P1249-0.50

Part

Nason Piston & pin set - 4P1249-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	77.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 1 Valve Relief
Piston Type:	Cast
Length:	61.00mm
Comp Height:	29.00mm - 2.20mm
Pin Size:	20.00mm x 65.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C6154
Size:	0.50mm Oversize

Description

Single Carby Model
