Nason >> Nason Piston & pin set - 4P1254-1.00

Nason Piston & pin set - 4P1254-1.00

Part
Nason logo

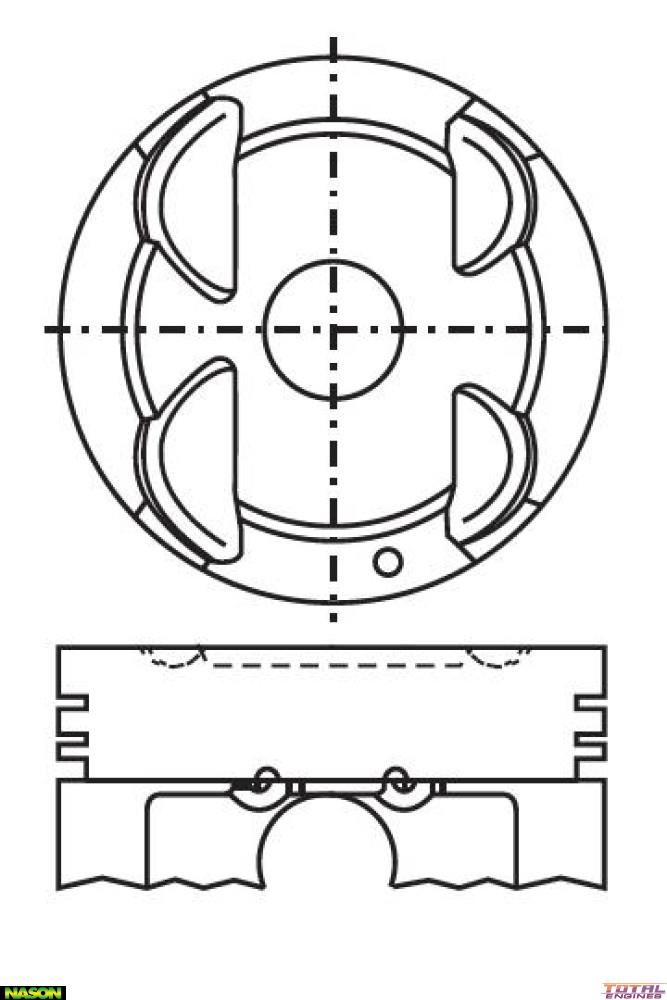

Nason Piston & pin set - 4P1254-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 78.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 4 Valve Relief
Piston Type: Cast
Length: 63.00mm
Comp Height: 32.00mm - 0.90mm
Pin Size: 20.00mm x 61.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4737 or 4737

Description

Replaces 4KRY8079
