Nason Piston & pin set - 4P1254-STD

Part

Nason Piston & pin set - 4P1254-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	78.00mm
Size:	Std

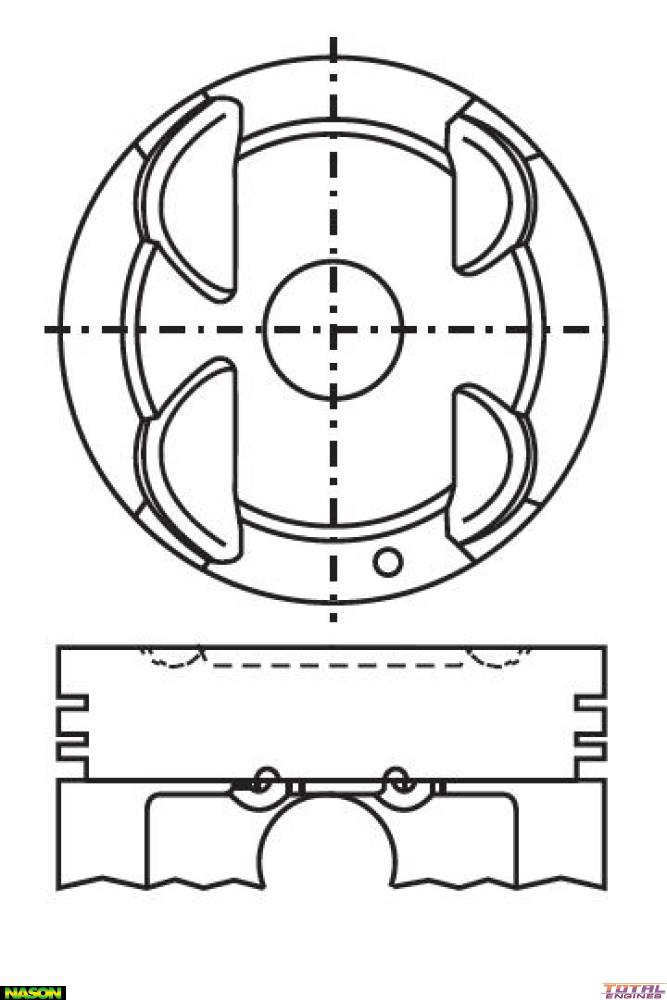

Head Type:	Dish Top with 4 Valve Relief
Piston Type:	Cast
Length:	63.00mm
Comp Height:	32.00mm - 0.90mm
Pin Size:	20.00mm x 61.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4737 or 4737
