Nason >> Nason Piston & pin set - 4P1257-0.50

Nason Piston & pin set - 4P1257-0.50

Part
Nason logo

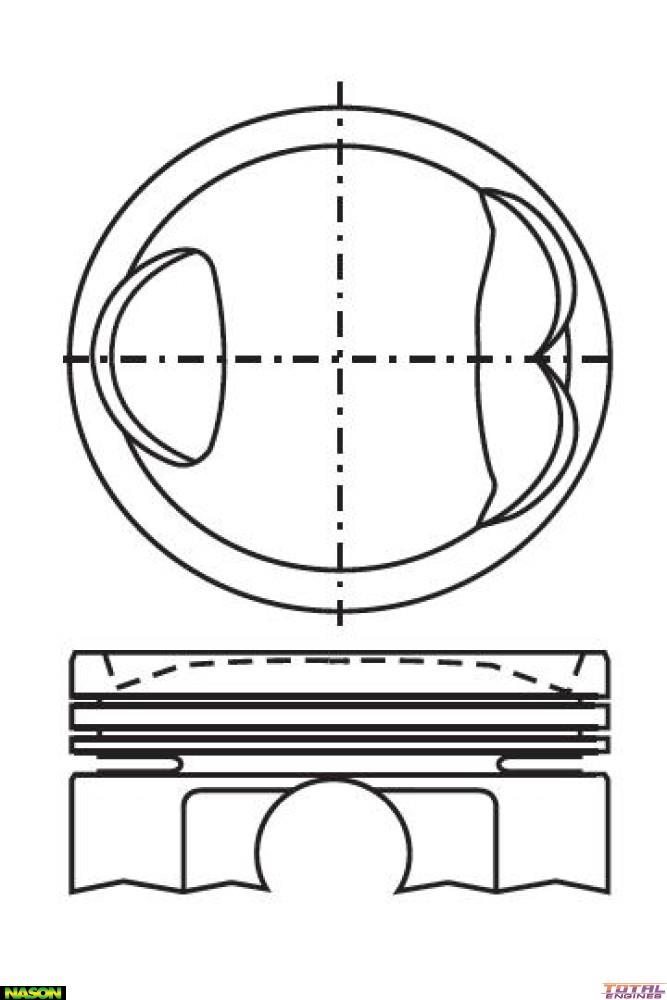

Nason Piston & pin set - 4P1257-0.50

$113.90

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4451
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 52.00mm
Comp Height: 28.80mm - 4.70mm
Length: 60.00mm
Piston Type: Cast
Head Type: Dish Top with 3 Valve Relief
Size: 0.50mm / .020"
Std Bore Size: 71.00mm
Piston Set: 4 x Piston & Pins
