Nason Piston & pin set - 4P1260-1.00

Part

Nason Piston & pin set - 4P1260-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	2M6149 or 6149
Oil Ring Width:	4.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	21.00mm x 72.00mm
Comp Height:	35.50mm - 2.30mm
Length:	71.80mm
Piston Type:	Cast

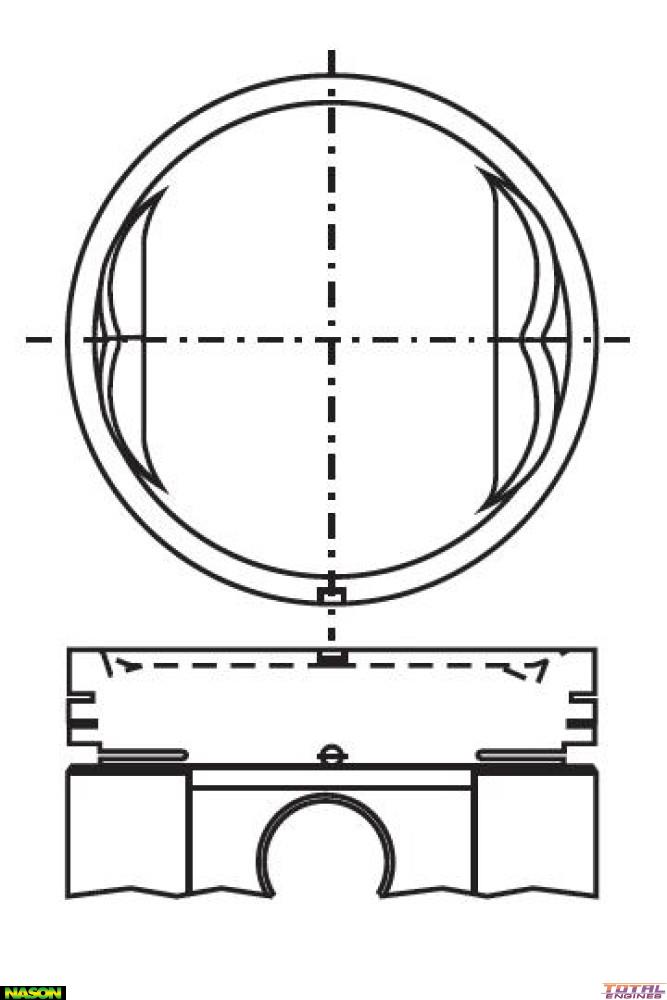

Head Type:	Dish Top with 4 Valve Reliefs
Size:	1.00mm / .040"
Std Bore Size:	87.00mm
Piston Set:	4 x Piston & Pins

Description

35.50mm Comp Height
