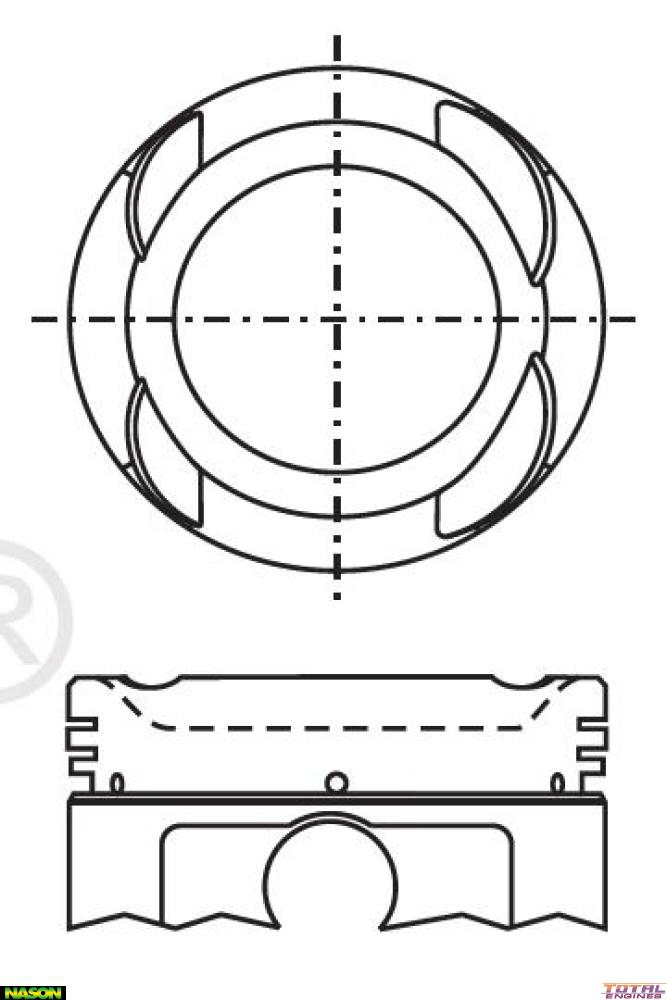

Nason Piston & pin set - 4P1261-1.00

Part

Nason Piston & pin set - 4P1261-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	71.50mm
Comp Height:	36.50mm - 9.50mm
Pin Size:	22.00mm x 67.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M5664 or 5664

Description
