Nason Piston & pin set - 4P1270-0.50

Part

Nason Piston & pin set - 4P1270-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	75.50mm
Size:	0.50mm / .020"

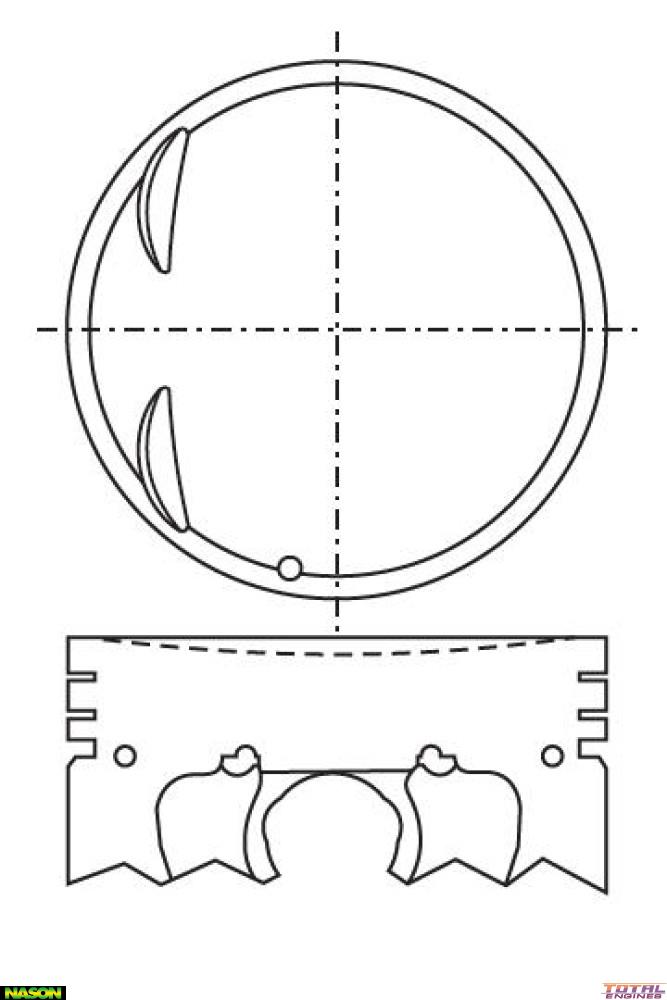

Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	51.30mm
Comp Height:	28.30mm - 1.30mm
Pin Size:	20.00mm x 52.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.50mm
Ring Set:	2C5184
Size:	0.50mm Oversize
