Nason >> Nason Piston & pin set - 4P1271-STD

Nason Piston & pin set - 4P1271-STD

Part
Nason logo

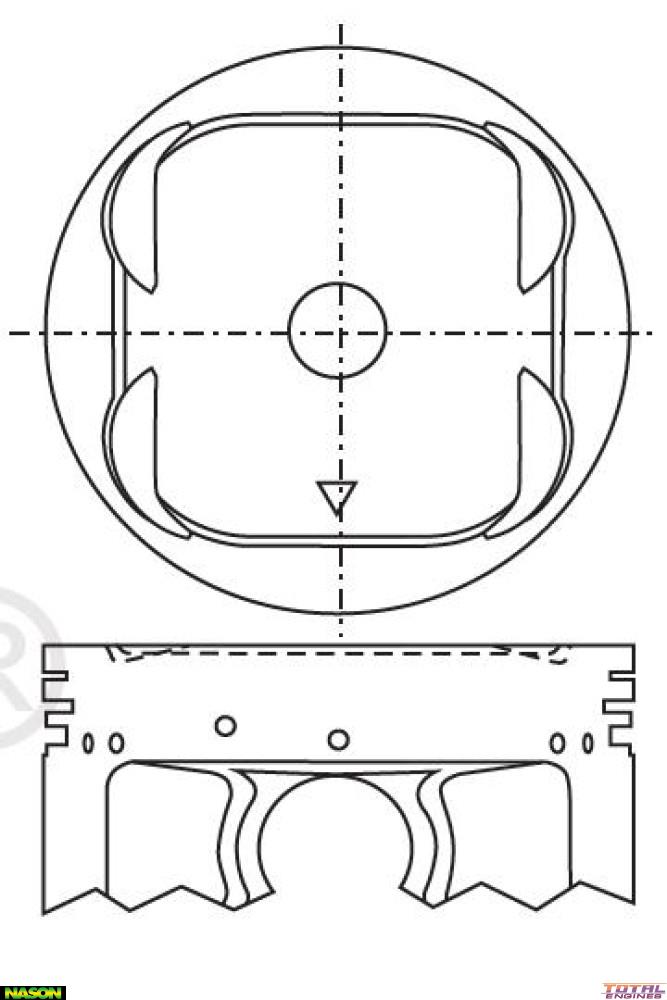

Nason Piston & pin set - 4P1271-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 54.10mm
Comp Height: 33.30mm - 1.50mm
Pin Size: 23.00mm x 58.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C5027

Description

Replaces 4MKRY7034
