Nason >> Nason Piston & pin set - 4P1274-1.00

Nason Piston & pin set - 4P1274-1.00

Part
Nason logo

Nason Piston & pin set - 4P1274-1.00

$140.13

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4654
Oil Ring Width: 2.80mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 57.00mm
Comp Height: 30.70mm - 2.00mm
Length: 65.20mm
Piston Type: Cast

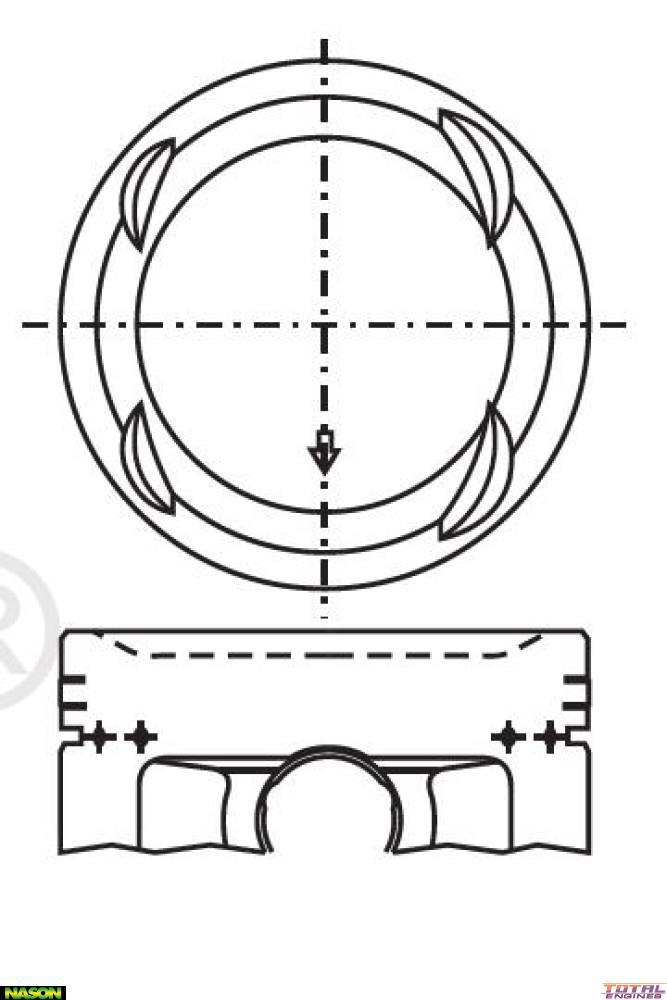

Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 85.00mm
Piston Set: 4 x Piston & Pins
